10m Reel - 32.8ft Long Run Waterproof Tape Light, IP67, CRI > 90, 140 LEDs/m - ETL 24VDC
SKU: RL-DX-LR140-T
Description
The IP67 LR140, 10m waterproof tape light is the highest density and lumen output of our Ribbon Star Long Run series tape lights. It is encapsulated in an IP67 silicone housing with 42 LEDs/ft (140 LEDs/m). A constant current driving IC design makes this strip able to be powered from one end with even brightness, which means no more splicing smaller strip lights together. The 2835 LED chip has low heat, high lumens and a long lifespan. The sleek waterproof housing is narrow enough to fit into almost any of our aluminum extrusion for 32ft long line of light effects for architectural or landscape designs. With a CRI greater than 90 spec colors, photos, and displays become more vibrant and true. This strip requires only 3.66W of 24VDC power per foot and has high lumen output up to 480 lm/ft. Each roll can be dimmed using low voltage PWM dimmer or dimmable power supply and can be cut and re-connected every 1.97" (5cm). This strip must be soldered and waterproofed to cut and connect. Each strip light roll includes one end cap, one wire lead with holed cap, 20 mounting straps and 40 mounting screws.
Specifications
| SPECIFICATIONS | |
| Model | Ribbon Star Long Run LED Strip Lights, 140LEDs/m, 32.8' (10m) |
| SKU | Warm: RL-DX-LR140-WW-T-10M Daylight: RL-DX-LR140-DW-T-10M Cool: RL-DX-LR140-W-T-10M |
| Dimensions | 32.8'L x 0.41"W x 0.23"H |
| Connection Type | 2 Wire (+/-) |
| LED Chip Type | 2835 |
| LED Quantity | 7 SMDs per 1.97 inch |
| LEDs Per Strip | 1400 SMD LEDs |
| Input Power | 24VDC Constant Voltage |
| Watts | 3.66W per foot |
| Beam Angle | 120° |
| Lumens | Warm: 403 lm/ft Daylight: 450 lm/ft Cool: 480 lm/ft |
| CRI | >90 |

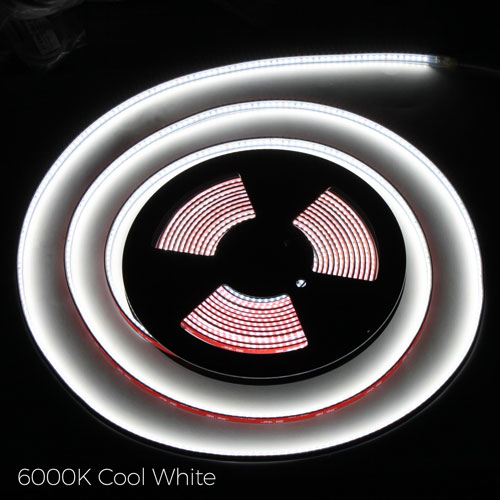

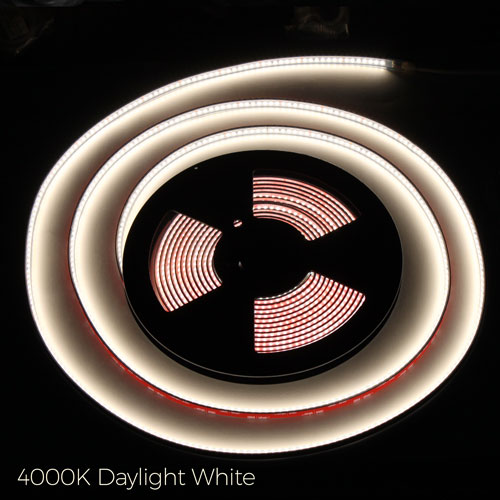

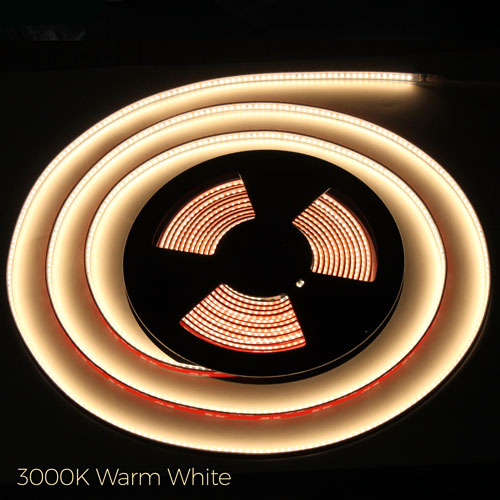

| Kelvin | Warm: 3000K Daylight: 4000K Cool: 6000K |
| Rating | IP67 Waterproof |
| Operating Temp | -4°~113°F |
| Max Serial Connection | 32.8 Feet |
| Certification | ETL Listed, RoHS, CE |
| Lifetime Hours | 50,000 Hours |
| Warranty Period | 2 Years |
Downloads
Reviews
|
Product Rating Based on 2 reviews |
Write a Review |
|---|---|
|
|
|
|
Warm White for Warm Weather Max | May 18, 2022 Reached out to Rick and Nate at Ecolocity, for new products capable of supporting a large scale outdoor Rail Lighting job. (This was our first test order with them). Their service was stellar, the Outdoor tape was perfect: High Efficacy, Weatherproof, cutable, versatile, thin, and it went together very well. This tape is great, efficient. We dimmed it on the low side and it remain flicker free down to 1% of threshold. |
|
|
RL-DX-LR140-T LED Waterproof Light Strip PDM | Oct 7, 2022 I ordered a set of waterproof LED light strips for a shower niche for a bathroom remodel. When I installed the strip, they wouldn't light up. I emailed the company about my problem. I received a phone call from the company (I was really surprised). I was asked a few questions and was quickly told my power supply was not strong enough for the strip. I needed 24v, I had a 12v power supply pack. I ordered one from Ecolocity. It arrived promptly. I installed the power pack, and my LED lights are working. I was really surprised and impressed by the fact that a company would actually take time to call a customer and do a consultation over the phone. GREAT CUSTOMER SERVICE!!!!! |
|
