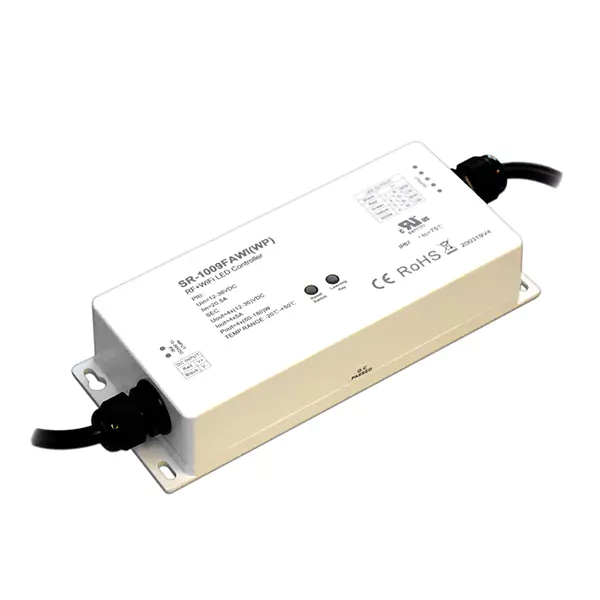

8 Zone UL Recognized 4 in 1 RF & WiFi Receiver, IP67 Waterproof, 12-36VDC 5A/CH
SKU: LC-SR-RGBW-RCWP
Description
Control up to 20 Amps of 12-36VDC LED lighting over 8 zones from a smartphone, tablet or RF remote using our UL recognized LED WiFi controller. Communicate with an unlimited amount of receivers that can be paired with your local wireless network. Color changing app functionality includes a color wheel selector as well as R,G,B sliders for more precise hexadecimal color selection with a slider for the white output when using RGBW. Single color app functions are limited to a basic monotone rotary dimmer. Previous modes are stored on power cycle. Each receiver is UL recognized and IP67 rated for indoor and outdoor environment. The power rating is 5 amps distributed over 4 channels, meaning when used with RGB lighting the output power is decreased to only 5 amps over 3 channels. All 4 channels can be used for single color dimming control.
Specifications
| Model | 8 Zone WiFi Network LED Receiver |
| SKU | LC-SR-RGBW-RCWP |
| Dimensions | 7.11" x 2.90" x 1.50"H |
| Input Connection | 2 Wire (+/-) |
| Output Connection | 5 Wire RGBW(+) |
| Input Power | 12 - 36VDC |
| Output Power | 5A x 4CH (5A x 3CH RGB) |
| Maximum Watts | 12VDC - 240W (180W RGB) 24VDC - 480W (360W RGB) |
| Rating | IP67 |
| Operating Temp | -4° ~ 122°F |
| App Name | EasyLighting |
| Warranty Period | 1 Year |
| Previous Mode on Power Cycle | Yes |
| Certification | UL Recognized, RoHS, CE |
| Static Color Choices | 16 Million |
| Color Changing Mode | 7 Color Fade with Audio Function |
