Ribbon Star Supreme Cool White LED Strip Light, 6000-6500K - UL 24VDC - IP20
SKU: RL-SC-RSS24-W-3M
Description

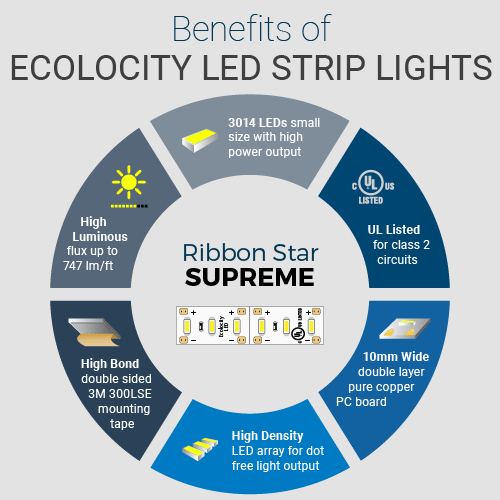

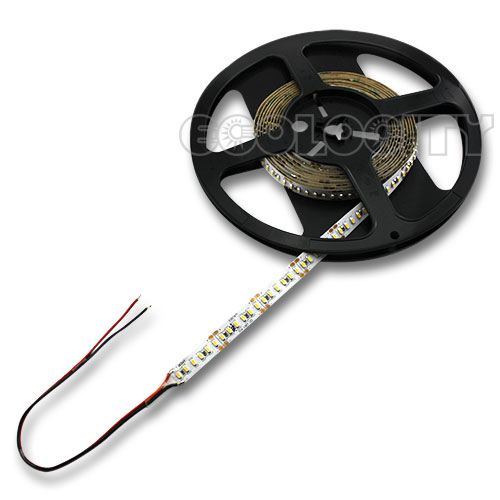

The Flexible Ribbon Star Supreme White LED Ribbon is one of the brightest 24V LED Strip Lights on the market. Each UL Listed 118" (3m) LED ribbon can be cut every 1.16" and must be soldered to re-connect. Comes with 3M™ mounting tape on the back, for the best long-term mounting solution. 6 high output 3014 SMD LEDs per 1.16" for a total of 612 LEDs per 118" LED strip. This LED Ribbon strip is extremely bright, so bright it can directly replace T-8 and T-12 Fluorescent bulbs in light boxes, and signs. It can also be used for overhead lighting, cove, under cabinet, back lighting and many more applications. We recommended that you mount this strip to steel or aluminum, for a good heat sink. Requires 8.4 Watts of 24VDC Constant Voltage power for every foot of strip light. This strip is a cool white 6000-6500K Color Temperature, UL Listed for class 2 luminaries and fixtures, RoHS and CE approved.
Specifications
| SPECIFICATIONS | |
| Model | Ribbon Star Supreme, White 24V, 118" (3m) |
| SKU | RL-SC-RSS24-W-3M |
| Dimensions | 118"L x 0.40"W x 0.07"H |
| Connection Type | 2 Wire (+/-) |

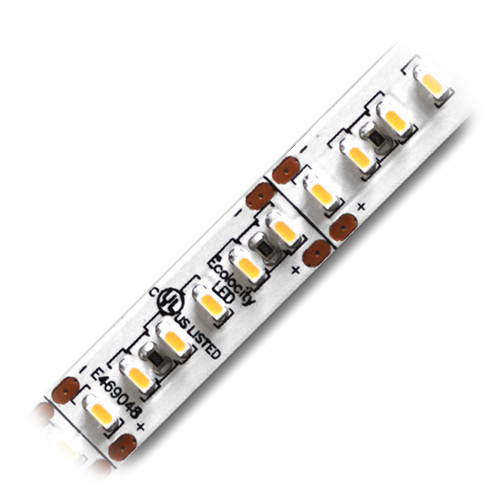

| LED Chip Type | 3014 |
| LED Quanity | 6 SMDs per 1.16 inch |
| LEDs Per Strip | 612 SMD LEDs |
| Input Power | 24VDC Constant Voltage |
| Watts | 8.4W per foot |
| Beam Angle | 120° |
| Lumens | 747 lm/ft |
| CRI | >80 |
| Kelvin | 6000-6500K |
| Rating | IP20 Indoor |
| Operating Temp | -4°~113°F |
| Max Serial Connection | 20 Feet |
| Certification | UL Listed, RoHS, CE |
| Lifetime Hours | 50,000 Hours |
| Warranty Period | 2 Years |
