Nicolaudie STICK-CW4 DMX Controller, 1024 Channels
SKU: LC-NL-STICK4
Description

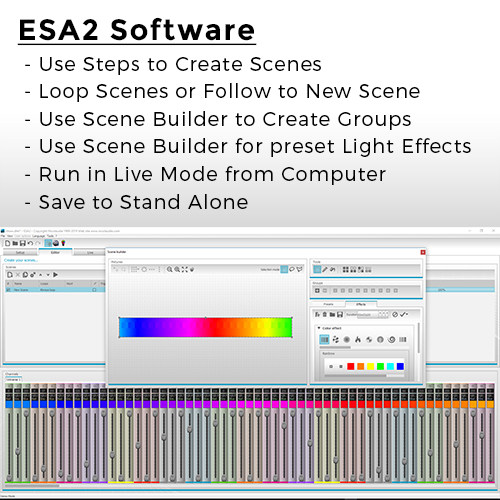

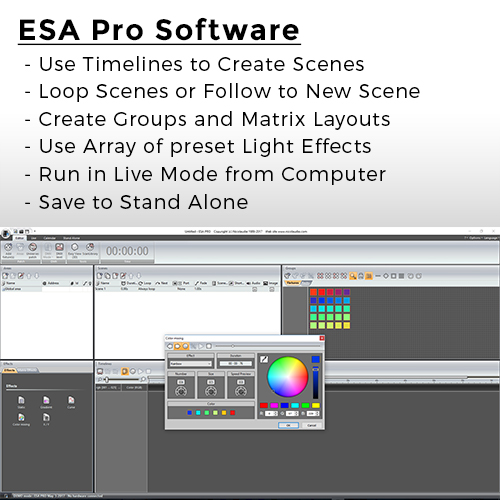

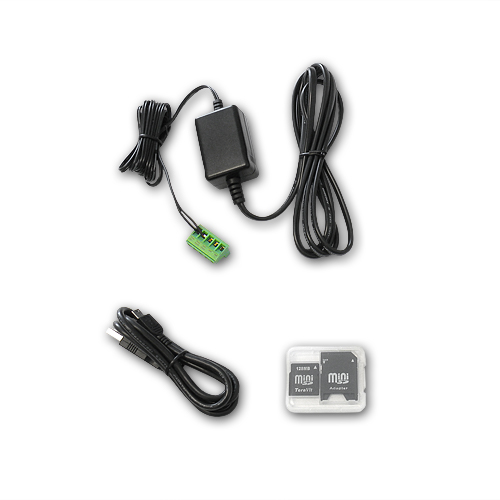

Introducing the STICK-CW4 DMX WiFi Controller from Nicolaudie. The first DMX controller that can be programmed and operated using built in WiFi connection, no need to run an Ethernet cable to your router for wireless capabilities. Control up to 1024 channels of RGBW, RGB and Single Color LED Lighting. Using the ESA2 or ESA PRO PC software you can create and save up to 36 custom lighting scenes over 1 zone and call them up using the 6 touch sensitive buttons on the face of the unit or by using the 8 dry contact ports for automated scene triggering. There are a total of 12 touch sensitive buttons plus color wheel control on the face of the unit that are designed to adjust, scene selection, color, saturation, speed, and brightness. When saving to stand alone (away from the computer) storage space allows for 2,729 scene steps using 20 DMX channels or 124 steps using 512 DMX channels. If connected to a WiFi network this controller can be paired to a number of free smartphone applications for scene triggering and customizable control directly from a mobile phone or tablet. Each CE and RoHS approved controller includes free computer software download, USB cable, and stand alone power supply.
Specifications
Model | STICK 4 DMX Controller |
SKU - Black | LC-NL-STICK4-BLK |
SKU - White | LC-NL-STICK4-WHT |
Dimensions | 5.75" x 4.17" x 0.43"H |
DMX Channels | 1024 |
DMX Output | RJ45 or Screw Terminal |
WiFi Capable | Yes |
Smartphone Control | Yes |
Windows Software | ESA2 / ESA Pro |
MAC Software | ESA2 |
Input Voltage | 5VDC Micro USB 6VDC Stand Alone |
Port Triggering | 8 (255 in binary) |
Clock Triggering | Yes |
Operating Temp | 14°~122°F |
Rating | IP20 Dry |
Warranty Period | 1 Year |
