Smooth Line Silicone Extrusion IP67 LED Strip Light - 24VDC
SKU: RL-SC-SL
$99.99
Order will ship: Monday, Jul 01
* If placed by Monday, Jul 01, 2:00pm PST.
Free Shipping On orders over $250 within the Continental U.S.
* Excluding oversized items. See Exclusions
Description

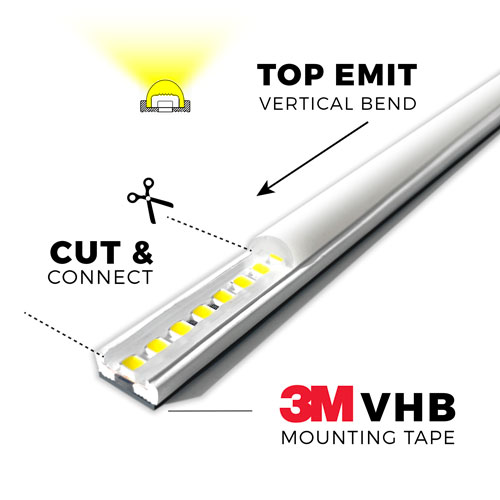

The Smooth Line LED Strip Light combines a flexible chip-on-FPC strip with a round topped outdoor rated silicone housing to create bright dot free, uniform and soft light with good linearity, no glare, and high color consistency. This strip creates elegant and luminous dot free lighting with an IP67 waterproof rating without the need of the extra cost of a mounting track with diffuser. Each 5m roll has a waterproof connector on each end and includes 20 mounting clips with screws, one silicone end cap, one silicone end cap for wire lead and one each of a male female connector to bare lead wire.
Specifications
| SKU | Color | Kelvin | Lumens | Watts | Voltage | CRI | Beam Angle | Rating | Max Serial |
|---|---|---|---|---|---|---|---|---|---|

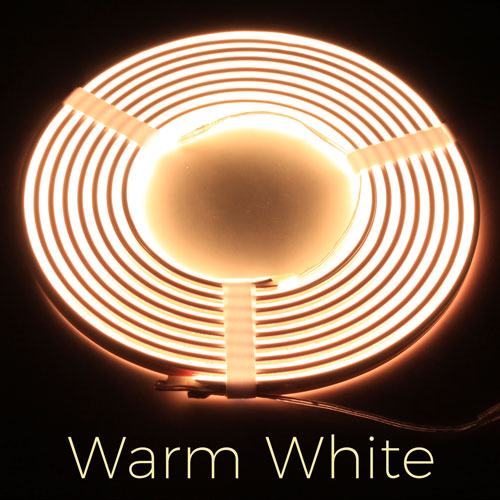

| RL-SC-SL-WW-5M | Warm White | 2800-3200K | 420.73 lm/ft | 4.57 W/ft | 24VDC | >80 | 150° | IP67 | 20ft |

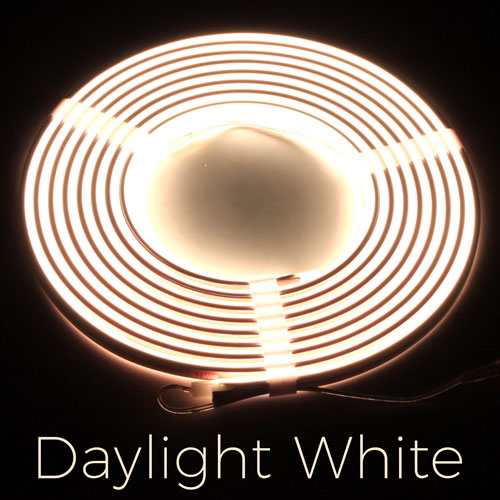

| RL-SC-SL-DW-5M | Daylight White | 3800-4500K | 475.61 lm/ft | ||||||

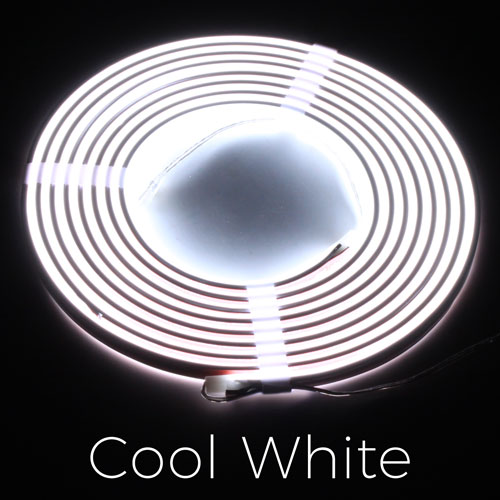

| RL-SC-SL-W-5M | Cool White | 6000-6500K | 487.80 lm/ft |
Downloads
Dimensions
Reviews
Note: * Indicates a required field
- There are currently no reviews for this product
Questions
Products Used for Installation
Strip Connectors
Waterproof Accessories
Channel & Diffuser
DC Power
LED Dimmer
Wire & Connectors
LED Strip Lights
Optional used to cut and re-connect indoor strips without soldering
(4) Ribbon Star Ultra 2, Strip to Strip Connector 8mm
SKU: RA-SC-UT-RR-4
(4) Ribbon Star Ultra 2, Strip to Wire Connector 8mm
SKU: RA-SC-UT-RW-4
(4) Ribbon Star Ultra 2, Strip Wire Strip Connector 8mm
SKU: RA-SC-UT-RWR-4
Required to maintain waterproof rating after cutting waterproof strips
Smooth Line Silicone Extrusion Front Cap with Hole
SKU: RA-SC-SL-FC
Smooth Line Silicone Extrusion End Cap
SKU: RA-SC-SL-EC
(10) Smooth Line Silicone Extrusion Mounting Clips with Screws
SKU: RA-SC-SL-MCLIP-10
RTV 4500 High Strength Silicone Sealant - 2.8oz Clear
SKU: OA-AM-SIL-GLU
Precision Micro Shears for Silicone Strip Housing and Small Wires
SKU: OA-AM-SIL-CUT
Optional but recommended for aesthetics and/or heat sink
PDS4 Aluminum Extrusions - .5" Deep
SKU: EX-KL1-1
KUBIK-45 Anodized Aluminum Extrusion Triangle Shape
SKU: EX-KL1-10
PDS-ZMG Glare Free Aluminum Extrusion - .87" Deep
SKU: EX-KL1-1GF
PDS-H Snap In Aluminum Extrusion - .44" Deep
SKU: EX-KL1-1SN
Required DC output must match LED light voltage
Mean Well Waterproof LED Power Supply 100W - 24VDC
SKU: PS-MW-100-W-24
Mean Well Waterproof LED Power Supply 150W - 24VDC
SKU: PS-MW-150-W-24
Mean Well Waterproof LED Power Supply 240W - 24VDC
SKU: PS-MW-240-W-24
Mean Well Waterproof LED Power Supply 600W - 24VDC
SKU: PS-MW-600-W-24
Required for dimming and color control
LTECH Q1 Dimming Remote Control 4 Zone - 108 Series RF Remote, 5-24VDC
SKU: LC-LT-108-REM-1C
Multi-zone Time Programmable LED Bluetooth Sync Dimmer for iOS & Android, 6-24VDC 15A
SKU: LC-RR-SGL-BTT
Waterproof Mini LED Dimmer With RF Remote, 5-24VDC 15A
SKU: LC-LF-27DIM
Flicker Free LED Knob Dimmer, Frequency Adjustable, 12-24VDC 30A
SKU: LC-LF-2DIM
Required for electrical connections
2 Conductor DC Connection Wire Red/Black Pair - 18AWG
SKU: LA-SS-DCW
2 Conductor Outdoor and Waterproof Wire - 18AWG
SKU: OA-SC-2C
2 Conductor Direct Burial Wire - 18AWG
SKU: OA-AX-2C
(10) 1 Pole Clamp Down T Lever Wire Nut with Fixed Holder
SKU: LA-LU-BC-1T-10
Waterproof Wire 3 Port T Connector, 1-4 Conductor
SKU: OA-GW-CON-3
