Ribbon Star 50/50, Waterproof LED Strip Light RGB + Warm White - UL 12VDC - 16.4' (5m)
SKU: RL-SC-RS50-T-RGBWW-5M
Description

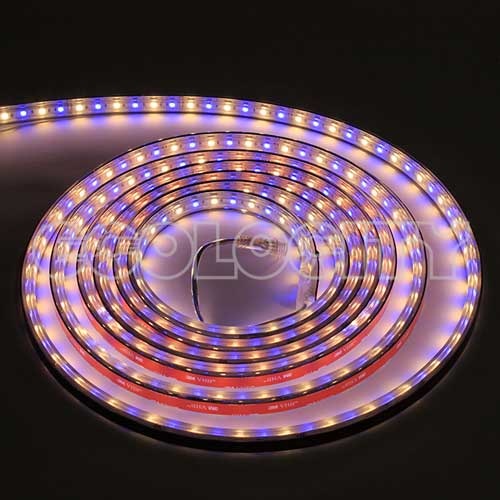

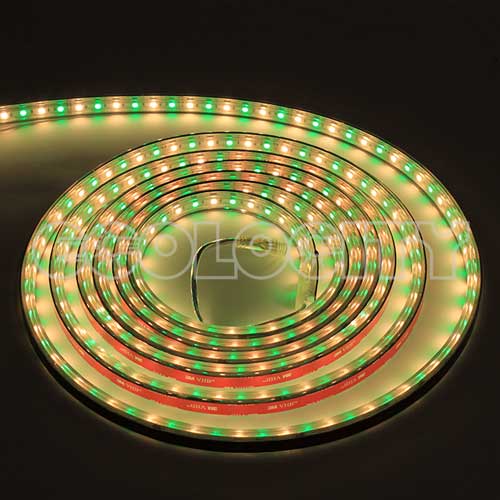

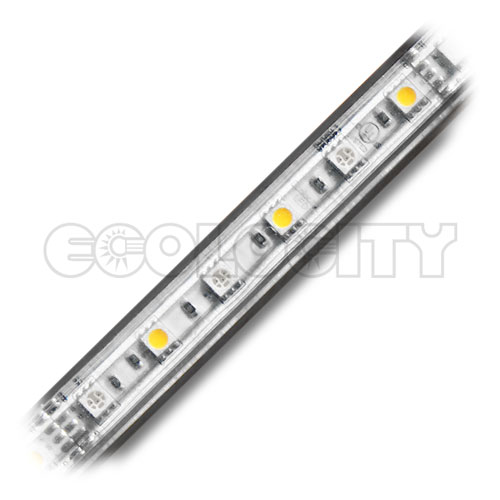

This durable and long lasting waterproof RGBWW LED Strip Light combines RGB and Warm White 5050 LED Chips into a single 16.4' weatherproof roll. This UL Listed LED Strip can produce over 4 billion shades of brilliant colors using 255 levels of brightness adjustment on each color. There are 3 RGB and 3 Warm White LED Chips every 4 inches. Each LED strip can be cut every 4 inches and can be reconnected by soldering wires to the copper pads beneath the silicon waterproof housing. Comes with 3M™ VHB mounting tape on the back, for the best long-term mounting solution. 75W of constant voltage 12VDC power is needed for this 16.4' strip (4.4W per foot). All colors of this LED Strip Light can be controlled using our 4 Channel RGB Controller or through 4 DMX channels in a DMX universe. The well-built RBGWW LED Light strip is IP67 rated and can be used for indoor or outdoor applications or any wet or damp environment. For optimal light output we recommend you connect these lights no longer than 20ft in series. This product comes with two waterproof connectors to bare lead wire, 10 mounting clips and 4 end caps. This strip light is UL Listed, RoHS and CE approved. This product is not intended to be submersed for extended periods.
Specifications
SPECIFICATIONS | |
Model | Ribbon Star Waterproof 50/50 RGB+WW, 16.4' (5m) |
SKU | RL-SC-RS50-T-RGBWW-5M |
Dimensions | 16.4' x 0.65" x 0.47"H |
Connection Type | 5 Wire RGBW(+) |
LED Chip Type | 5050 |
LED Quantity | 6 SMDs per 4 inches |
LEDs Per Strip | 300 SMD LEDs |
Input Power | 12VDC Constant Voltage |
Watts | 4.4W per foot |
Beam Angle | 120° |
Lumens | 305 lm/ft |
Rating | IP67 Waterproof |
Operating Temp | -4°~104°F |
Max Serial Connection | 20 Feet |
Certification | UL Listed, RoHS, CE |
Product Lifetime | 50,000 Hours |
Warranty Period | 2 Years |
Downloads
Downloads & Info |
Click For Product Data Sheet |
LED Strip Light Comparison Guide |
