Ribbon Star Flexible RGB + 6000K White LED Backlight Sheet - UL 24VDC - IP20

RGBW Backlight Sheet Cut Backlight Sheet 3M Backing Tape RGBW LED Sign Backlit LED Sign LED Backlight Sheet Grid
RGBW Backlight Sheet Cut Backlight Sheet 3M Backing Tape RGBW LED Sign Backlit LED Sign LED Backlight Sheet Grid

SKU: RL-SC-SBS-RGBW

Order will ship: Thursday, Nov 07 * If placed by Thursday, Nov 07, 2:00pm PST.
Free Shipping On orders over $250 within the Continental U.S. * Excluding oversized items. See Exclusions
Buy
Discount
You Pay
5+
5% off
$47.50
10+
8% off
$46.00
15+
10% off
$45.00

Description

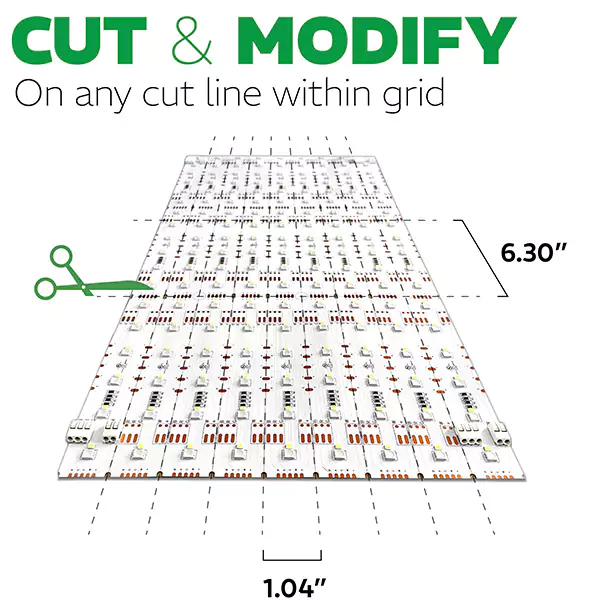

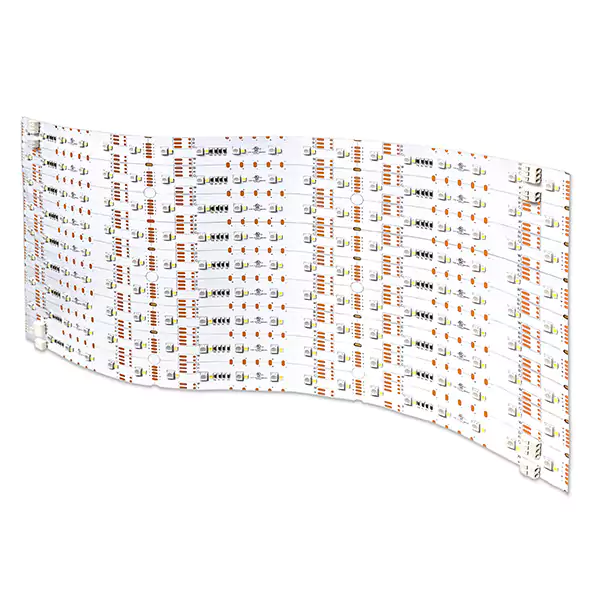

A 240mm x 480mm rectangular RGBW LED backlight sheet for creating smooth and even color changing + 6000K back lighting over large areas such as narrow light boxes, onyx counter tops, stained glass and more. A grid layout of LED chips consists of nine rows and eighteen cuolumns of both color changing 5050 RGB LEDs with a separate 2835 single color 6000K white SMD LED. Each panel has multiple cut and solder points plus push down wire connectors to manipulate, link and create irregular layouts such as lettering or non linear shapes.

Specifications

SKU Color Kelvin Lumens Watts Voltage CRI Beam Angle Rating Max Serial
RL-SC-SBS-RGBW RGBW 6000K 2,880 lm/ft 36W 24VDC >80 120° IP20 ≤144W

Reviews

Product Rating

Write a Review
Create a Review Your Rating:

- There are currently no reviews for this product

Questions

Products Used for Installation
