Water-Resistant RGB LED Signal Amplifier, 12-24VDC 4A/CH
SKU: LC-OL-3RGBA
Description

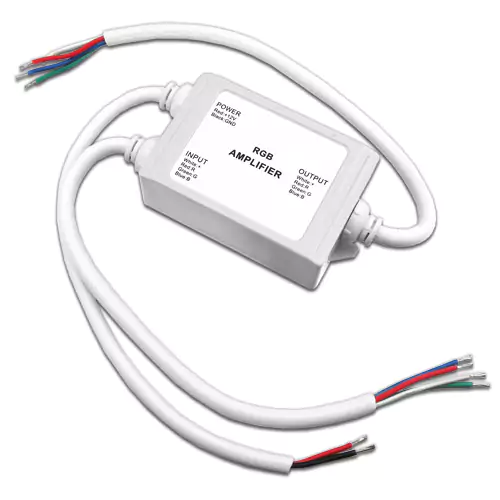

A waterproof RGB LED Signal Repeater / amplifier that can be used to add more RGB LED modules, RGB LED Ribbon or RGB LED Lights to your existing RGB LED controller and will allow the additional lights to perform the same color changes as the RGB lights connected to the main controller. By adding this RGB Amplifier and another power supply you can add up to 144W of RGB Lighting at 12VDC or 288W at 24VDC to your existing RGB lights. For Constant Voltage 12-24VDC system only, 4A per channel and 144W/12VDC or 288W/24VDC of power maximum through this amplifier. For use with 4 pin, 3 loop, common anode style RGB Lighting. Bare wire type for all connections on this LED signal repeater. Non-submersible, or meant to be exposed directly to outdoor elements.
Specifications
| Model | RGB Signal Repeater, waterproof |
| SKU | LC-LN-3RGBA |
| Dimensions | 4" X 2" X 1.25" T |
| Type | 4 Pin, 3 Loop, Common Anode |
| Constant Voltage DC Power | 12-24VDC 4A per Channel Max |
| Watts | 144W Max - 12VDC 288W - 24VDC |
| Rating | Wet or Dry |
| Warranty Period | 1 Year |
