LED Knob Dimmer One Channel PWM, 12-24VDC 8A
SKU: LC-OL-2DIM
$9.99
Order will ship: Monday, Jul 01
* If placed by Monday, Jul 01, 2:00pm PST.
Free Shipping On orders over $250 within the Continental U.S.
* Excluding oversized items. See Exclusions
Buy
Discount
You Pay
6+
5% off
$9.50
15+
8% off
$9.20
30+
12% off
$8.80
75+
15% off
$8.50
Description

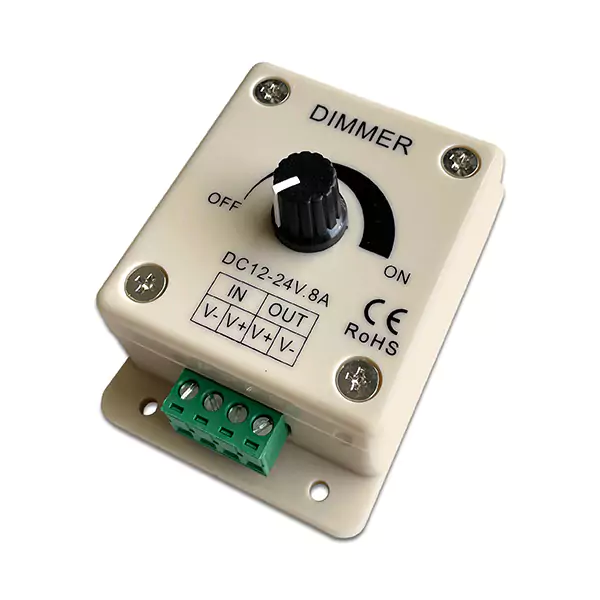

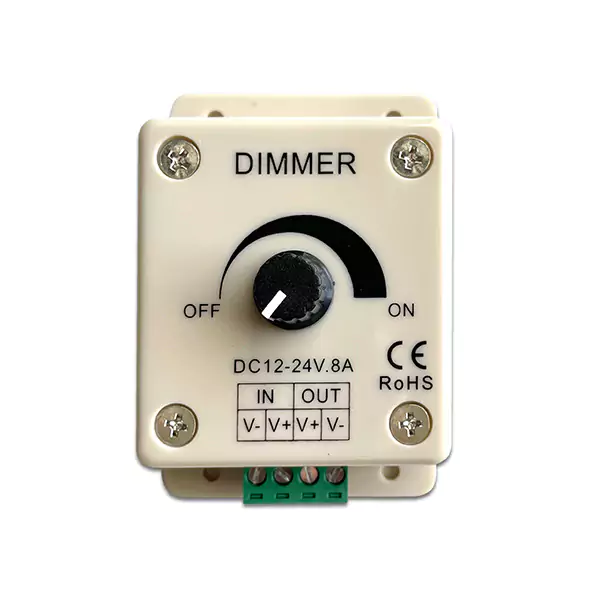

This simple LED Light Dimmer uses a knob to dim your LED lighting products. It requires 12-24VDC input to operate, can handle 1 channel up to 8A or 96W of power at 12VDC, 192W of power at 24VDC. Wires are easily secured with screw down style connections. Can be used to dim LED lights, LED modules, LED light Ribbon or for dimming pretty much any one color LED product with 12-24VDC constant voltage power requirements.
Specifications
| Model | PWM Dimmer Knob |
| SKU | LC-OL-2DIM |
| Dimensions | 3.5" X 2.375" X 2.25"T |
| Type | PWM, 1 Channel |
| DC Power | 12-24VDC |
| Watts | 12V - 96W Max 24V - 192W Max |
| Rating | Dry |
| Warranty Period | 1 Year |
