Waterproof Mini LED Dimmer With RF Remote & 8 Modes, 5-24VDC 12A
SKU: LC-LF-23DIM
Description

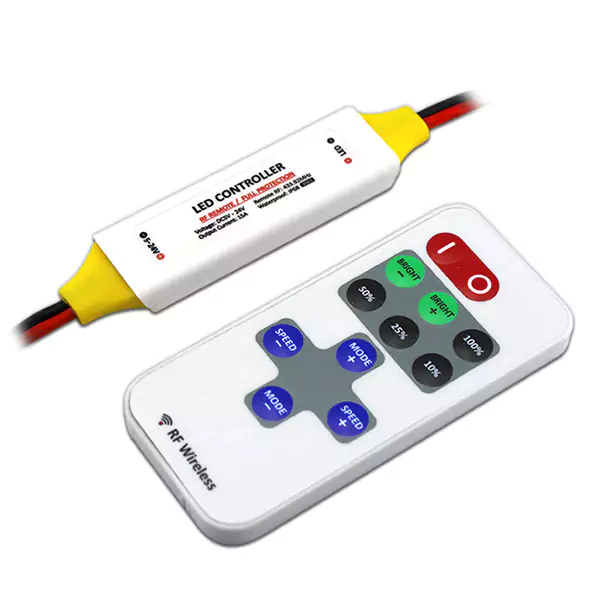

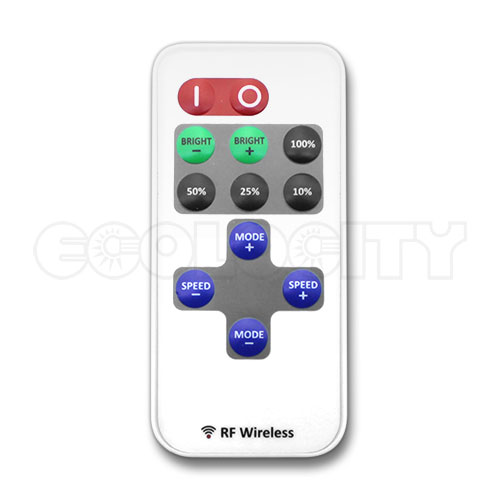

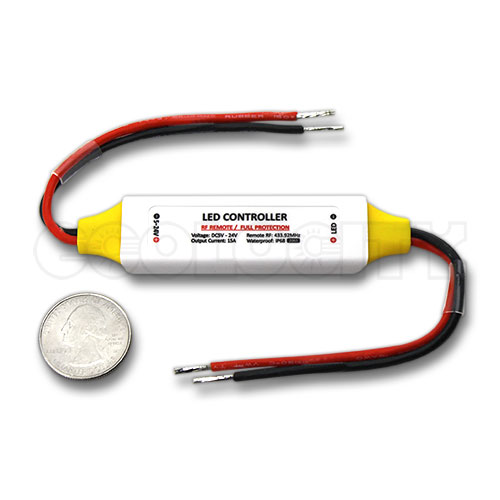

Our IP68 rated Waterproof Mini LED Dimmer with RF Remote is an amazing 5-24VDC LED dimmer that provides smooth LED dimming from 5-100% as well as 8 built in flashing and strobe modes with speed adjustment. Don't let the small size fool you this controller boasts 12A of maximum output power or 60W at 5VDC, 144W at 12VDC, and 288W at 24VDC. The bare wire leads make connecting your dimmer simple for any indoor or outdoor 5-24VDC Constant Voltage installation. The RF remote has a number of pre-set dimming levels for quick and easy dimming. Dimming levels or current mode will be remembered when 5-24VDC is turned off and back on. An IP68 rating makes this product waterproof for any outdoor LED project but is not designed to be submersed or directly exposed to outdoor elements. Each RF remote includes one 3V CR2025 battery for operation.
Specifications
| Model | Waterproof Mini LED Dimmer with RF Remote |
| SKU | LC-LF-23DIM |

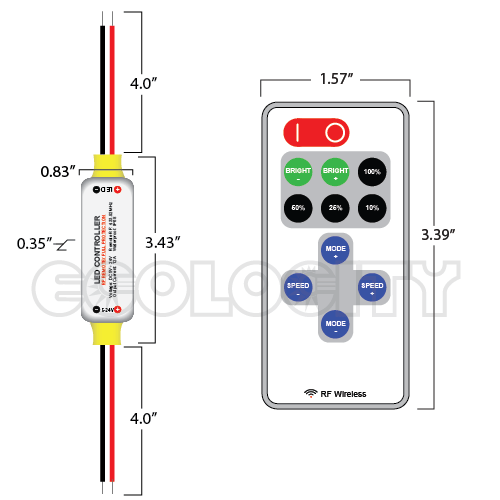

| Dimensions | 3.43" x 0.83" x 0.35"H |
| Input Connection | 2 Wire (+/-) 16AWG |
| Output Connection | 2 Wire (+/-) 16AWG |
| Input Power | 5 - 24VDC |
| Output Power | 12A x 1CH |
| Maximum Watts | 5VDC - 60W 12VDC - 144W 24VDC - 288W |
| PWM Frequency | 8KHz |
| Rating | IP68 |
| Operating Temp | -22° ~ 176°F |
| Warranty Period | 1 Year |
| Previous Mode on Power Cycle | Yes |
| Remote Control Radius | 50ft (line of sight) |
| Dimming Levels | 10 |
| Modes | 8 Modes, 10 Levels Speed |
Reviews
|
Product Rating Based on 1 review |
Write a Review |
|---|---|
|
|
|
|
Glad I Found It Michael Woratzeck | May 22, 2023 I called stores in my area and no one had or knew where I could find the part. I googled and googled and only found one place that offered the part I was looking for. I was leery of ordering it from an unknown source and could not find any reviews on line. I took a chance. The part was received a day early. It worked. It has a slightly shorter range than the original, but otherwise perfect so far. I prefer free shipping from Amazon, but I would order from Ecolocity again without worry. |
|
Questions
|
(1) Product Question |
Have a Question? |
|---|---|
|
|
|
|
Dick Hirsch asked: Nov 17, 2014 May I use this dimmer to control 2 darklight Precision Z spots, using the wall outlet plug darklight makes for these spots? Thanks, Dick Hirsch Ecolocity LED Responded: Nov 17, 2014 Dick, thanks for the question. I found the spec sheet for the z spot bulbs online and it looks like they are 12VDC PWM Dimmable, so this dimmer should work for those spots. I can't give you a 100% guarantee because we don't carry z spot bulbs but it looks like they are compatible. |
|
