Ribbon Star MegaLux, Cool White LED Strip Light, 5700-6500K - ETL 24VDC - IP20
SKU: RL-DX-MGL-W-3M
Description

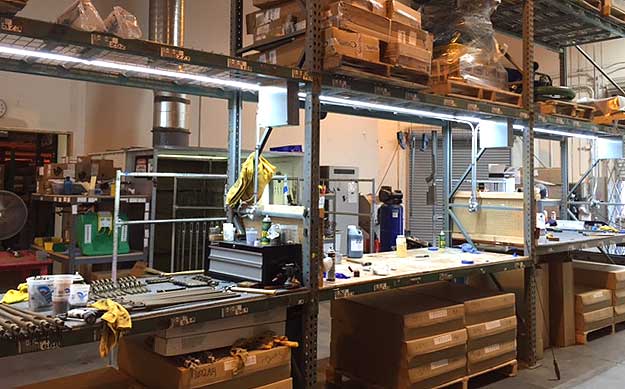

Our Ribbon Star MegaLux White LED Strip Light is a super bright and economical 24VDC LED Strip Light boasting an astonishing 1,128 lumens per foot. This ETL Listed 118" (3m) LED ribbon can be cut every 1.97" and must be soldered to re-connect and must be mounted to a metal heat sink. Comes with a heavy duty double sided mounting tape on the back, for the best long-term mounting solution. 8 high output 2835 SMD LEDs per 1.97" for a total of 480 high output LEDs per 118" LED strip. At 7.98 watts per foot this strip requires at least 80W of 24VDC Constant Voltage power (3.33A) per 118" strip. This LED Ribbon strip is so bright it can directly replace T-8 and T-12 Fluorescent bulbs in home and business interior lighting, light boxes, and signs. It can also be used for overhead lighting, cove, under cabinet, back lighting and many more applications. We recommended that you mount this strip to steel or aluminum, for a good heat sink. ETL Recognized, RoHS and CE approved.
Specifications
| SKU | Color | Kelvin | Lumens | Watts | Voltage | CRI | Beam Angle | Rating | Max Serial |
|---|---|---|---|---|---|---|---|---|---|
| RL-DX-MGL-WW-3M | Warm White | 2900-3200K | 1,070 lm/ft | 7.98 W/ft | 24VDC | >80 | 120° | IP20 | 20ft |
| RL-DX-MGL-DW-3M | Daylight White | 3700-4250K | 1,122 lm/ft | ||||||
| RL-DX-MGL-W-3M | Cool White | 5700-6500K | 1,128 lm/ft |
Downloads
Dimensions
Reviews
Note: * Indicates a required field
DC24v led strip and 24v SMPS for sign board use
for sign board use
Oct 11, 2019 | ken luiz
Questions
Products Used for Installation
