Magnitude LED Power Supply Dimmable by Magnetic Low Voltage Dimmer 12V - 300W
SKU: PS-MT-300-12
Description
If you have you been looking for a way to dim your LED Lights from a wall mounted dimmer, then this is the LED Power Supply for you. Use any compatible low voltage magnetic dimmer and dim your LED lights from 0-100%. This power supply is ETL listed, CSA listed, and encased in a NEMA 3R enclosure. Built in manual reset thermal circuit breaker allows for shutdown upon an electrical short. We have 120VAC input or 277VAC input, 60Hz available. Output 12VDC up to 300w. Can be dimmed with standard low voltage magnetic dimmer, see list of compatible dimmers below. Transformer is fully encapsulated for protection against the elements. No External Fusing Required. Avoid using dimmers not rated for magnetic low voltage lighting or not labeled as symmetrical forward phase as they may cause overheating of the power supply or cause damage to the load. It is also not recommended to use dimmers with neutral connections or dimmers requiring a minimum load for proper operation.
Specifications
| SPECIFICATIONS | |
| Model | Magnitude LED Power Supply MLV Dimmable |
| SKU | PS-MT-300-12 |

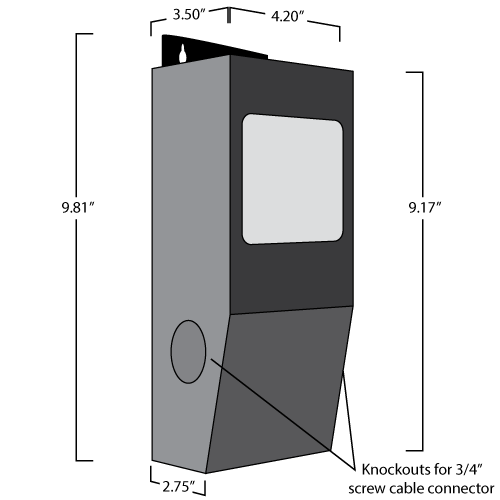

| Dimensions | 4.20"L x 3.50"W x 9.81"H |
| AC Input Voltage | 120VAC and 277VAC (separate parts) |
| DC Output | 12VDC - 25A |
| Output Watts Max | 12VDC - 300W |
| Rating | Dry/Damp |
| Warranty Period | 2 Years |
Reviews
|
Product Rating Based on 1 review |
Write a Review |
|---|---|
|
|
|
|
Interim Review George and Jill Emmert | Nov 13, 2020 Stunningly fast delivery. We've previously purchased one such power supply identical to the two additionals now purchased. Initially-purchased power supply was easy to understand and connect with a LED prototype fixture, partly to test dimming with Lutron Diva dimmer. Power supply provided appearance of steady illumination down to about 70% of maximum, the test we wanted it to pass. |
|
Questions
|
(1) Product Question |
Have a Question? |
|---|---|
|
|
|
|
Angel Simon asked: Feb 16, 2015 We need 8 power supply how your PS-MT-300-"12" . ADJUSTABLE OR FIXED FOR USE IN 13.5 VOLT DIRECT CURRENT (13.5 VDC) . PLEASE IF YOU HAVE WHAT I NEED, BACK ANSWER TO MI . OR CALL ME (ON SPANISH )TO 786 286 8074 ( MY ENGLISH WHEN SPEAK IS TO BAD Ecolocity LED Responded: Feb 16, 2015 Angel, sorry but nobody here speaks Spanish fluently. If I understand you correctly you are looking for a 12 volt direct current transformer that you can adjust the voltage to 13.5 volts DC output? All of our Magnitude transformers made for use only with a low voltage magnetic dimmer, if you are not using this type of dimmer switch I would not use this transformer, and the output is not adjustable. We have a variety of Mean Well transformers with adjustable DC voltage output. The part numbers are as follow. PS-MW-75-12 PS-MW-100-12 PS-MW-200-12 PS-MW-320-12 PS-MW-600-12 PS-MW-1000-12 |
|
