Ribbon Star Ultra Cool White LED Strip CRI 90, 5750-6250K, UL 12VDC - IP20
SKU: RL-SC-UT12-W-3M
Description

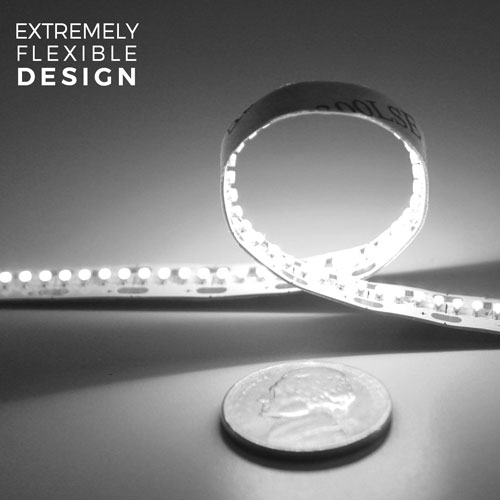

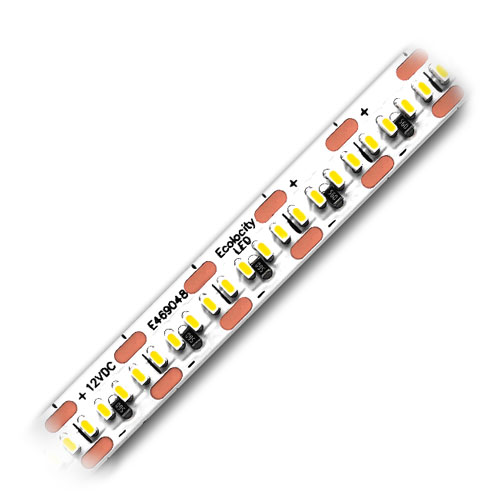

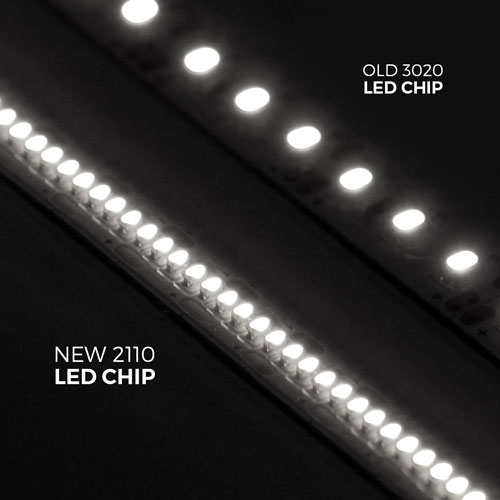

Version 2 of our Ribbon Star Ultra White LED Strip has a smaller and brighter PC design with extremely durable and flexible 2110 size CRI 90+ LED chip. This new chip can be cut to fit any size and outputs extremely bright, dot free, high CRI color popping illumination. 1200 LEDs per Strip makes Ultra 2.0 the ideal choice for pairing with our aluminum channels to build custom lighting fixtures for upscale residential and commercial uses. Embed into drywall, use under cabinets, light up a display, the applications are endless. Each roll of Strip Light has heavy duty 3M™ mounting tape on the back, for the best long-term mounting solution. Each foot of strip light consumes 6.1 watts of 12VDC power. An adequate 12VDC Constant Voltage power source is required. One bin keeps the 5750-6250K color temperature consistent from order to order. We recommended that you mount this to steel or aluminum for a good heat sink. UL Listed for class2 luminaries and fixtures, CE and RoHS compliant.
Specifications
| SPECIFICATIONS | |
| Model | Ribbon Star Ultra 2, Cool White, 118" (3m) |
| SKU | RL-SC-UT12-W-3M |
| Dimensions | 118"L x 0.32"W x 0.07"H |
| Connection Type | 2 Wire (+/-) |
| LED Chip Type | 2110 |
| LED Quantity | 4 SMDs per 0.4 inch |
| LEDs Per Strip | 1200 SMD LEDs |
| Input Power | 12VDC Constant Voltage |
| Watts | 6.1W per foot |
| Beam Angle | 120° |
| Lumens | 610 lm/ft |
| CRI | >90 |
| Kelvin | 5750-6250K |
| Rating | IP20 Indoor |
| Operating Temp | -4°~113°F |
| Max Serial Connection | 15 Feet |
| Certification | UL Listed, RoHS, CE |
| Warranty Period | 2 Years |
