PDS4-PLUS Aluminum Extrusions - .5" Deep
SKU: EX-KL1-1PL
Description

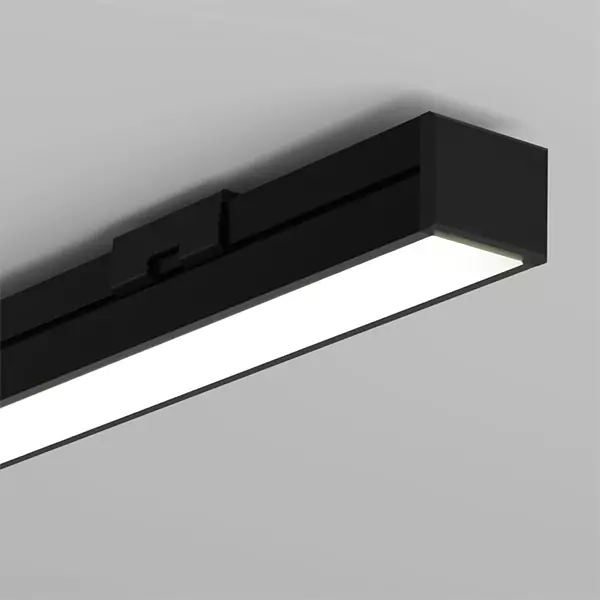

The KLUS PDS4 type aluminum extrusion is a basic half inch square shaped channel, perfect for 8mm and 10mm wide low voltage LED Strip Lights. With a variety of cover and finish options this channel can be used indoors and outdoors to create custom LED lighting fixtures. Choose from non-anodized aluminum, double anodized aluminum, double anodized black, or a white lacquered finish. The extra frosted indoor cover provides a clean line of light when used with a densely spaced SMD LED strip light with at least 3 LEDs per inch. Change the beam angle of the LED Strip to 10° using the focus lens for a more condensed light beam or wall wash. Outdoor Covers can achieve an IP67 rating when sealed properly using a silicon adhesive and are recommended in any outdoor or UV exposed environment. This channel is also available in 3M lengths in the silver anodized finish, please call (775) 636-6060 to order.
Specifications
| SPECIFICATIONS | |
| Model | PDS4 Aluminum Extrusion |
| SKU | EX-KL1-1 |
| KLUS Ref: | B1718 |
| Dimensions | 39.37"L x 0.63"W x 0.47"H |
| Base Width | 0.44" |
| Material | Aluminum |
| Cover | Polycarbonate |
| Mounting | VHB Tape, Mounting Clips |
| Available Lengths | 1M, 2M, (3M Anodized, Black-Anodized Only) |
| Available Finishes | Non-Anodized, Anodized, Black-Anodized, White Lacquered |
Downloads
Reviews
|
Product Rating |
Write a Review |
|---|---|
|
|
|
|
- There are currently no reviews for this product
|
|
Questions
|
(1) Product Question |
Have a Question? |
|---|---|
|
|
|
|
Jake asked: May 21, 2021 I would like to have recessed lights on the rise of my stairs. Could these channels be mounted inside a concrete form, so that after the concrete sets the channel can be accessed from the front side? |
|
