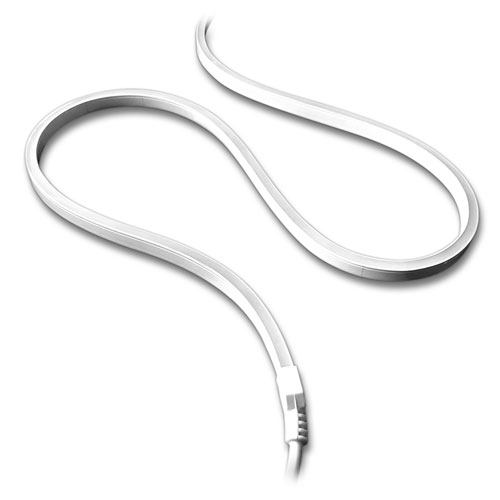

White LED Neon Waterproof Horizontal Bend Side Emitting - ETL 24VDC - 197"(5m)

Neon Flex White Shine Neon Dimension Accessories
Neon Flex White Shine Neon Dimension Accessories

SKU: LN-DX-NE-WH-FH-5

$119.99
Order will ship: Monday, Jul 01 * If placed by Monday, Jul 01, 2:00pm PST.
Free Shipping On orders over $250 within the Continental U.S. * Excluding oversized items. See Exclusions
Buy
Discount
You Pay
6+
5% off
$114.00
13+
8% off
$110.40
31+
12% off
$105.60
61+
15% off
$102.00
100+
18% off
$98.40

Description

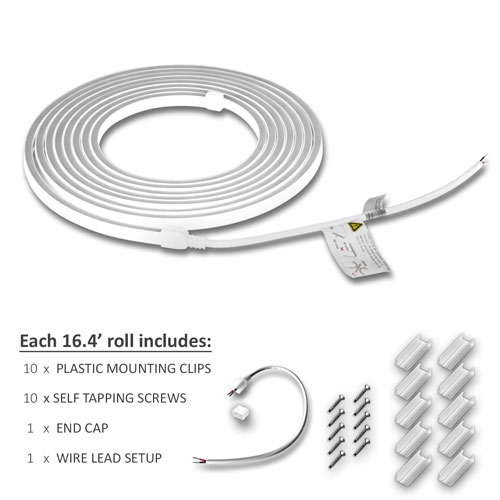

Our thin and flat topped side emitting LED neon white flex rolls have an 8mm strip inside to create a smooth, shadow free 6000K linear lighting from a smaller profile. These strips are easy to conceal and not overly bright to blind someone staring directly at them. They are perfect for making signs, designs on walls, embedding into surfaces, architecture, landscaping, or any indoor or outdoor application. The IP67 silicone housing creates a dust and water tight seal, while diffusing the LEDs below for no visible dots or hot spots. Use any of the glue and solder free quick connect options to make easy splices and connections throughout the flex strip. This strip is designed to bend on a horizontal axis and requires clips or mounting profile to adhere. Each 5 meter roll (16.4ft) includes one solder assembly wire lead, one end cap, 10 mounting clips and 10 self tapping screws. The neon flex requires 24VDC input and a minimum of 3.51 watts per linear foot of lighting to power. An entire 16.4ft roll would need at least 58W to operate. Each strip is safety tested with ETL listed, RoHS and CE marks.

Specifications

SPECIFICATIONS
ModelFlat Neon Side Emitting, Waterproof White
SKULN-DX-NE-WH-FH-5
Dimensions197" x 0.31" x 0.47"H
Connection Type2 Wire (+/-)
LED Chip Type2835
LED Quantity6 SMDs per 1.97 inches
LEDs Per Strip600 SMD LEDs
Input Power24VDC Constant Voltage
Watts3.51W per foot
Beam Angle110°
Lumens131 lm/ft
CRI>80
Kelvin6,000K
RatingIP67 Waterproof
Ambient Temp-4°~113°F
Max Serial Connection30 Feet
CertificationETL, RoHS, CE
Warranty Period2 Years

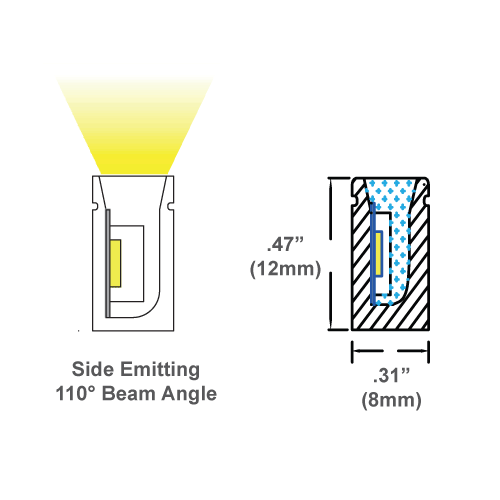

Dimensions

Neon Side View
