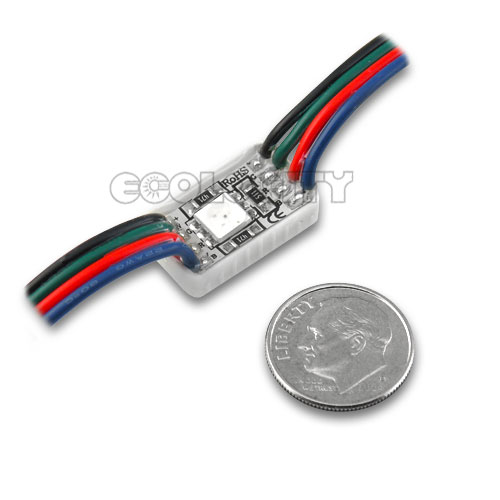

Dwarf Star 1 Chip LED Backlight Module - RGB
SKU: MD-HT-ES1-RGB
Description

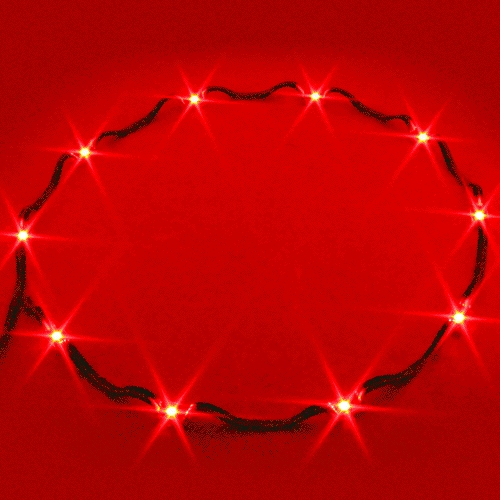

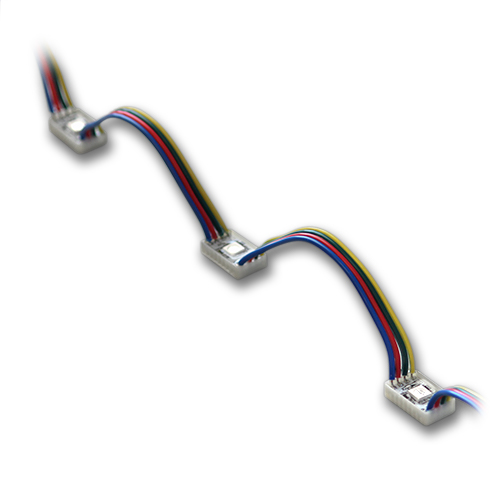

This LED backlight module is a truly unique product. When your project calls for a light with a small form factor and physical imprint look no further than our Dwarf Star 1 module. This product easily conforms to linear, circular or curved layouts with a max serial connection of 20 modules with power from one end, 40 modules if powered at both ends. Don't let the small size of this LED module fool you, it is more than capable to handle all your lighting needs with a max output of 0.72W per LED chip. The Dwarf Star has the ability to be cut at the lead wires between each module for ultimate tailoring to your project. This tiny powerhouse module is ideal for channel letter, halo lighting, sign lighting, accent and cove lighting, under cabinet lighting, hobbyist lighting, model architectural lighting and many more projects! A constant voltage 12VDC power source is needed to power this product. The plastic ABS shell and clear epoxy coating provides limited water-resistance to moisture, non submersible or UV proof.
Specifications
| SPECIFICATIONS | |
| Model | Dwarf Star 1 chip LED Backlight Module - RGB |
| SKU | MD-HT-ES1-RGB |
| Dimensions | 0.79" x 0.47" x 0.18"H |
| Connection Type | 4 Wire RGB(+) |
| LEDs Chip Size | 5050 |
| LEDs Quantity | 1 LED per Module |
| Module Spacing | 4.35" Center to Center |
| Module Count | 10 per 3.6 ft 40 per 14.5 ft |
| Input Power | 12VDC |
| Watts | 0.72 Watts per module |
| Beam Angle | 120° |
| Lumens | R: 1.88 lm G: 4.40 lm B: 1.5 lm |
| Rating | IP65 Water-resistant |
| Operating Temp | -4° ~ 122°F |
| Max Serial Connection | 20 Modules 40 Modules Looped Circuit |
| Lifetime Hours | 50,000 Hours |
| Certification | CE, RoHS |
| Warranty Period | 1 Year |
Downloads
Reviews
|
Product Rating |
Write a Review |
|---|---|
|
|
|
|
- There are currently no reviews for this product
|
|
Questions
|
(2) Product Questions |
Have a Question? |
|---|---|
|
|
|
|
Jim deemer asked: Mar 4, 2014 Are the dwarf rgb leds modules water proof thanks jim Ecolocity LED Responded: Mar 4, 2014 Jim, thanks for your question. The Dwarf Star Modules are IP65 Water-Resistant. They are not meant to be submersed or exposed directly to outdoor elements. They can be installed outdoors just make sure they aren't in the direct sun light or sitting in water all day everyday. |
|
|
Tom S asked: Nov 14, 2014 I'm new to DMX, Would each light on this strand be addressable? So each light could be a different color at the same time. Thanks Ecolocity LED Responded: Nov 14, 2014 Tom, thanks for the question. This module could do what you say but you would need a DMX decoder for each module(s) that you want to control separately, which will end up costing you a small fortune. A more economical solution would be our digital module kits. These modules use a special IC chip to set a DMX address for each module using only one DMX decoder. You can find these kits by searching "digital modules" in our search bar, or feel free to give us a call at 775-636-6060 and we would be happy to provide you with more information. |
|
