Ribbon Star Doublewide Dual Row LED Strip Lights - 240 LEDs per Meter - 24VDC - IP20
SKU: RL-SC-RSD
$114.99 full reel price (9.84ft) *shorter lengths available
Order will ship: Monday, Dec 30
* If placed by 2:00pm PST.
Free Shipping On orders over $250 within the Continental U.S.
* Excluding oversized items. See Exclusions
Description

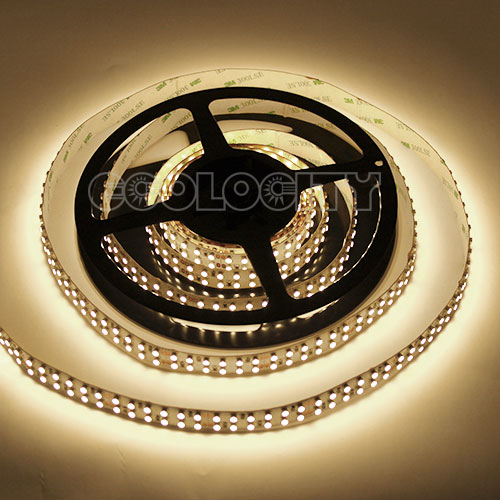

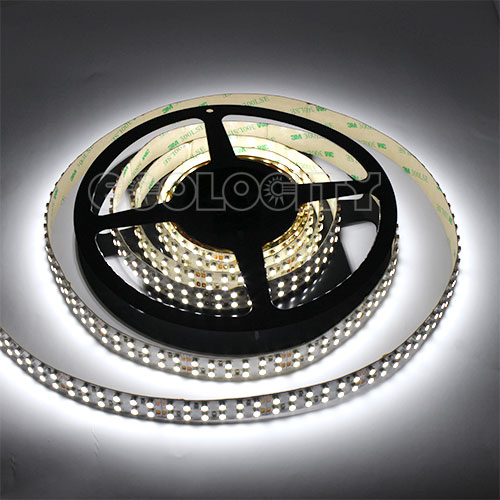

Ribbon Star Doublewide White LED Strip Lights are a dual row, bright, low heat and high power strip ideal for creating permanent light fixtures using our larger sized aluminum channels and diffusers. With a dense array of 12 LEDs per 1.97" this strip when paired with a frosted cover creates dot free lighting for custom hanging and surface mounted aluminum strip light tracks using KLUS extrusions and mounting supplies.
Specifications
| SKU | Color | Kelvin | Lumens | Watts | Voltage | CRI | Beam Angle | Rating | Max Serial |
|---|---|---|---|---|---|---|---|---|---|
| RL-SC-RSD-WW-3M | Warm White | 3000-3500K | 427 lm/ft | 5.4 W/ft | 24VDC | >80 | 120° | IP20 | 30ft |
| RL-SC-RSD-W-3M | Cool White | 6000-6500K | 518 lm/ft |
Downloads
Dimensions
Reviews
|
Product Rating |
Write a Review |
|---|---|
|
|
|
|
- There are currently no reviews for this product
|
|
Questions
Products Used for Installation
Optional used to cut and re-connect indoor strips without soldering
(5) Ribbon to Ribbon Connector Ribbon Star Doublewide
SKU: RA-SC-RSD-RR-5
(3) Ribbon to Wire Connector Ribbon Star Doublewide
SKU: RA-SC-RSD-RW-3
Optional but recommended for aesthetics and/or heat sink
JAZ Aluminum Extrusion with 180° Cover for Hanging Fixtures
SKU: EX-KL3-10

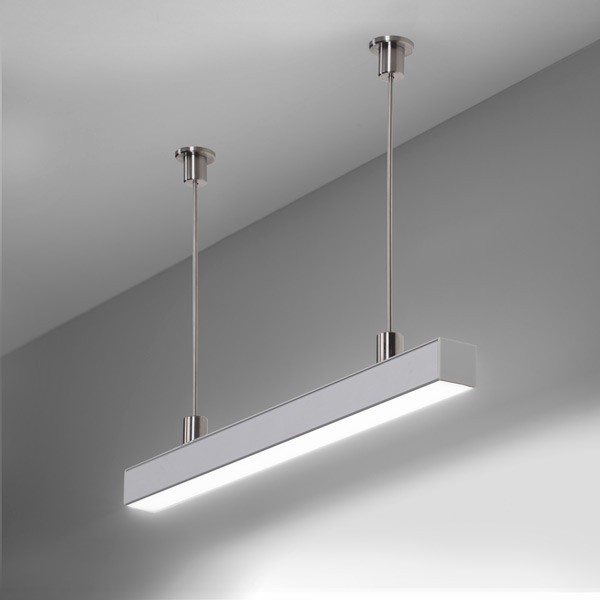

LIPOD Aluminum Extrusion - 1" Wide x 1" Deep
SKU: EX-KL3-3

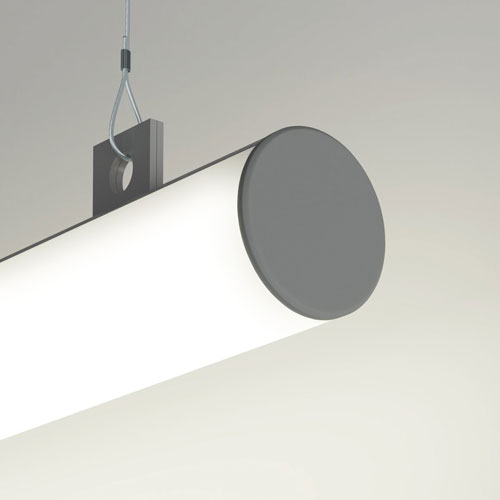

UCHO-ZM Fastener for Steel Cable Looping to Suspend Fixtures
SKU: EX-KL-MNT-ZM-EYE
(2) PUSZ-SM Conductive Fasteners for Suspended Strip Light Fixtures
SKU: EX-KL-MNT-5
FI-1 Stainless Steel Mounting Cable for Extrusions - 2m
SKU: EX-KL-MNT-3
PUSZ-ALU Stainless Steel Straight Mounting Rods for Hanging Fixtures
SKU: EX-KL-MNT-SR
Required DC output must match LED light voltage
Mean Well LED Power Supply Two Output 100W - 24VDC
SKU: PS-MW-100-24
Mean Well LED Power Supply Three Output 200W - 24VDC
SKU: PS-MW-200-24
Mean Well LED Power Supply CV 350W - 24VDC
SKU: PS-MW-350-24
Mean Well LED Power Supply CV 600W - 24VDC
SKU: PS-MW-600-24
Required for dimming and color control
LTECH E1 LED Wall Dimmer - 108 Series Touch Panel, 12-24VDC
SKU: LC-LT-108-PAN-1C
LTECH Q1 Dimming Remote Control 4 Zone - 108 Series RF Remote, 5-24VDC
SKU: LC-LT-108-REM-1C
Flicker Free LED Knob Dimmer, Frequency Adjustable, 12-24VDC 30A
SKU: LC-LF-2DIM
Required for electrical connections
2 Conductor DC Connection Wire Red/Black Pair - 18AWG
SKU: LA-SS-DCW
2 Conductor Outdoor and Waterproof Wire - 18AWG
SKU: OA-SC-2C
(10) 1 in 2 Out Lever Wire Nut T Splitter with Fixed Holder
SKU: LA-LU-BC-1T-10
(10) 1 Conductor Interlockable Clamp Down Wire Connectors
SKU: LA-LU-BC-1B-10
