Ribbon Star Indoor Accent Series, Dim to Warm Tape Light - ETL 24VDC - IP20
SKU: RL-SC-UT24-DTW
Description

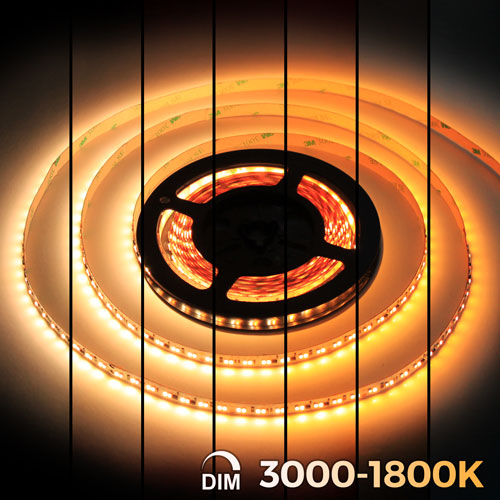

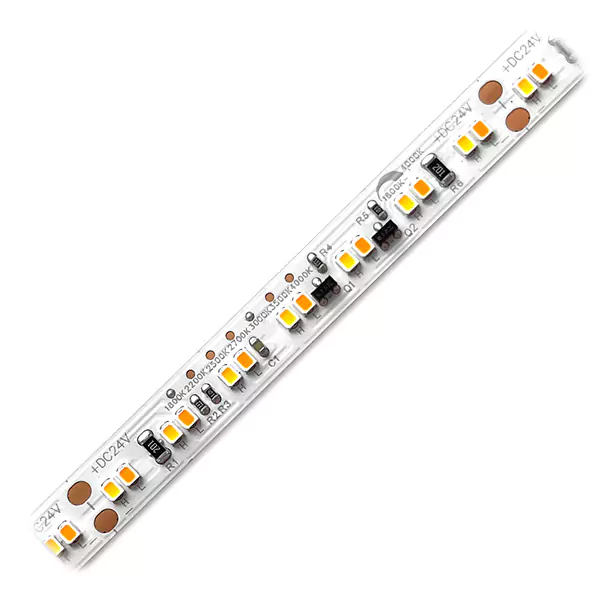

Our dim to warm accent series strip light consists of small sized 2216 led chips with both warm and super warm output. The high density strip light is designed to get warmer in color temperature when dimmed. This is a low output strip light which is best used in accent lighting situations, such as toe kicks, back splashes, under bars, movie theaters, dining areas, or any room or area where a low light and intimate setting is the goal. This strip requires 24VDC input with a minimum of 2.44 watts of power per foot of lighting. The strip light can be dimmed using a dimmable power supply and compatible wall switch or by one of our many low voltage LED dimmers.
Specifications
| SKU | Color | Kelvin | Lumens | Watts | Voltage | CRI | Beam Angle | Rating | Max Serial |
|---|---|---|---|---|---|---|---|---|---|
| RL-SC-UT24-DTW-5M | Dim to Warm | 1800-3000K | 213 lm/ft | 2.44 W/ft | 24VDC | >80 | 120° | IP20 | 30ft |
Dimensions
Reviews
|
Product Rating |
Write a Review |
|---|---|
|
|
|
|
- There are currently no reviews for this product
|
|
Questions
|
(2) Product Questions |
Have a Question? |
|---|---|
|
|
|
|
Anonymous asked: Jul 18, 2023 Do you have specifications for the dimming/color temperature curve? For example, at what perceived brightness percentage does the strip emit 2700K light? Thanks! Ecolocity LED Responded: Jul 18, 2023 Thanks for your question. I just uploaded an image from the manufacturer that show the dimming temperature curve. Looks like 2700K lands around 50% brightness. |
|
|
robin asked: Dec 14, 2023 how many strips can be linked together with one dimmer/power supply? Ecolocity LED Responded: Dec 15, 2023 The strips have a max serial connection of 30ft and require 2.44 watts of power per foot. So you can link 2 x 5m rolls and then wire as many as you need in parallel for larger installs. If you have any questions about what that means give us a call and we can help you out. |
|
