Digital Star Addressable RGBIC LED Strip Lights - 30 LEDs per Meter - UL 12VDC - IP20 & IP65
SKU: RL-SC-DS
$89.99
Order will ship: Wednesday, Mar 26
* If placed by Wednesday, Mar 26, 2:00pm PST.
Free Shipping On orders over $250 within the Continental U.S.
* Excluding oversized items. See Exclusions
Description

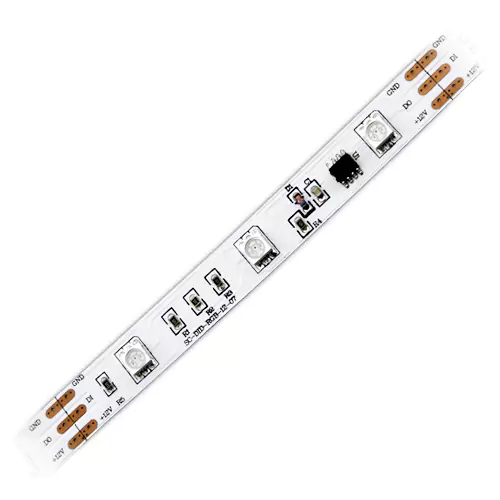

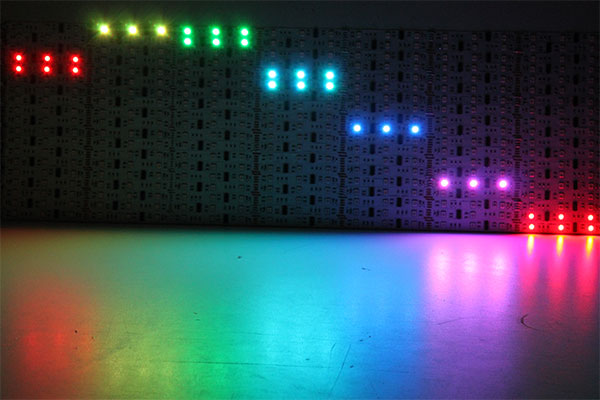

This product is a 12VDC Digital LED Strip Light with an 1803 type IC chip. Control each 4" section of 3 LEDs using DMX control or any compatible controller for an 1803 type IC chip. Each 4" RGB section uses 3 DMX channels and will flow in sequence from the starting channel, 150 DMX channels per 16.4ft roll. 1.9W per foot, requiring 36W of 12VDC power per 16.4' strip. If you are not sure this is the right product for you please call and consult a sales associate before ordering.
