2.4G Color Tempurature Controller (CCT) 12-24VDC 8A/CH
SKU: LC-LN-CCT-2.4G
Description

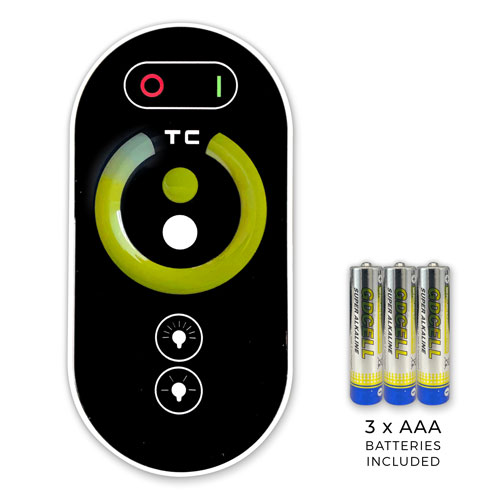

The Temperature Adjustable Sync Controller uses the most advanced 2.4GHZ RF wireless transmission technology to sync the touch activated RF Temperature Adjustable Remote Control to its receiver within 65ft. The controller comes color temperature adjustments, and brightness adjustments using advanced PWM (pulse width modulation) control technology to create smooth dimming with no flickering (Note: Lowest Dim level ≈ 10%). A unique circle touch pad enables a full range of temperature control, 2 quick select buttons make it easy to select lowest and highest CTT range, and 10-100% dimming or brightening on the current setting. Great for use with white and warm white LEDs or any two colors of common anode 12-24VDC Constant Voltage LED Lights. Maximum output of 8 amps per 2 channels for a combined output of 192W at 12VDC, or 384W at 24VDC. Each remote is pre-paired to its designated receiver using a unique frequency ID.
Specifications
| SPECIFICATIONS | |
| Model | CCT Adjustable Controller |
| SKU | LC-LN-CCT-2.4G |
| Dimensions | 3.27" x 3.11" x 1.30"H |
| Input Connection | 2 Wire (+/-) |
| Output Connection | 3 Wire CW/WW(+) |
| Input Power | 12 - 24VDC |
| Output Power | 8A x 2CH |
| Maximum Watts | 12VDC - 192W 24VDC - 384W |
| Ambient Temperature | -4° ~ 140°F |
| Rating | Indoor / Dry |
| Pairing Distance | 65ft Line of Sight |
| Previous Mode on Power Cycle | Yes |
| Warranty Period | 1 Year |
