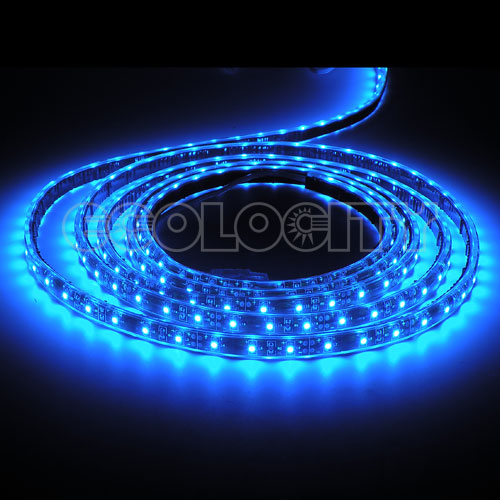

Ribbon Star, Waterproof Blue LED Strip Light - UL 12VDC - 118" (3m)
SKU: RL-SC-RS-T-B-3M
Description
This UL Listed waterproof, dust proof, UV proof, and flexible Ribbon Star LED strip provides a perfect light source for many exterior / outdoor lighting projects. The 118" (3m) roll is easy to use and comes with water-resistant connectors, male on one end and a female on the other end. It also has many quick connection options for easy connection and use. Comes with 3M™ VHB™ mounting tape on the back, for the best long-term mounting solution. 3 SMD LEDs per 2 inches with a total of 180 LEDs, which require 14.6W of power for 118" strip (1.46W per foot). This LED ribbon tape has the perfect brightness for ambient lighting, stair and step lighting, fences, eves, gazebos, decks, backlighting, and many more outdoor backlighting applications. Extras include 10 clear plastic screw down holders, 4 closed end caps, 4 end caps with holes for wiring, and a waterproof connector at each end. Each roll requires a 12VDC Constant Voltage power source and is not intended to be submersed for extended periods. This LED Strip is UL Listed for class 2 low voltage luminaries and fixtures, RoHS and CE approved.
Specifications
SPECIFICATIONS | |
Model | Ribbon Star Waterproof, Blue - 118" (3m) |
SKU | RL-SC-RS-T-B-3M |
Dimensions | 118"L x 0.48"W x 0.28"H |
Connection Type | 2 Wire (+/-) |
LED Chip Type | 3528 |
LED Quantity | 3 SMD LEDs per 1.97" |
LEDs Per Strip | 180 SMD LEDs |
Input Power | 12VDC Constant Voltage |
Watts | 1.46W per foot |
Beam Angle | 120° |
Rating | IP67 Waterproof |
Operating Temp | -4°~104°F |
Max Serial Connection | 30 Feet |
Certification | UL Listed, RoHS, CE |
Product Lifetime | 50,000 Hours |
Warranty Period | 2 Years |
Downloads
Downloads & Info |
Click For Product Data Sheet |
Ribbon Star Connection Guide |
