Programmable RGBW Color Wheel Controller WIFI & RF 8 Zones UL, 12-36VDC
SKU: LC-SR-RGBW-8Z
Description

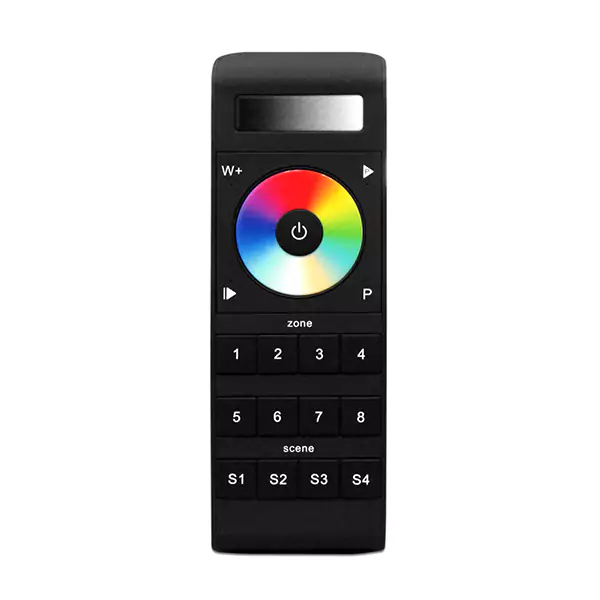

Control up to 8 separate zones of low voltage RGBW LED lighting from this attractive color wheel RF remote. The remote pairs wirelessly to any given amount of UL Recognized indoor or outdoor receivers. When used with our WiFi receivers the user is also given the ability to control the lighting from a smartphone or tablet using the free 'Easylighting' app. A built in programming function allows you to choose up to 5 color selections and then enable a color changing mode with a fade, flash, strobe or jump sequence. In addition there are 10 pre-programmed color changing modes with speed and brightness adjustment. Save up to 4 of your favorite color changing scene settings using the quick scene selection buttons. The white output is controlled independently from the color changing options using the W+ button on the remote. See specifications and data sheets below for power input, max load and pairing instructions.
Specifications
| RF Remote Specs | |
| Model | 8 Zone RGBW Remote Control |
| Remote SKU | LC-SR-RGBW-8Z |
| Remote Dimensions | 6.02" x 2.05" x 0.75"H |
| Input Power | 3xAAA Batteries (not included) |
| Rating | IP20 |
| Operating Temp | 0° ~ 104°F |
| Previous Mode on Power Cycle | Yes |
| RF Remote Radius | 100ft (line of sight) |
| Certification | RoHS, CE |
| Warranty Period | 1 Year |
| Previous Mode on Power Cycle | Yes |
| Static Color Choices | Color Wheel Selection w/ Dimming |
| Color Changing Modes | 10 Modes See Modes
|
| IP20 RF Receiver | |
| SKU | LC-SR-RGBW-REC |
| Dimensions | 6.69" x 2.32" x 1.14"H |
| Input Connection | 2 Wire (+/-) |
| Output Connection | 5 Wire RGBW(+) |
| Input Power | 12 - 36VDC |
| Output Power | 8A x 4CH |
| Maximum Watts | 12VDC - 384W 24VDC - 768W |
| Rating | IP20 |
| Operating Temp | -4° ~ 122°F |
| Certification | UL Recognized, RoHS, CE |
| Warranty Period | 1 Year |
| IP20 RF/WiFi Receiver | |
| SKU | LC-SR-RGBW-REC-WI |
| Dimensions | 7.01" x 2.24" x 0.83"H |
| Input Connection | 2 Wire (+/-) |
| Output Connection | 5 Wire RGBW(+) |
| Input Power | 12 - 36VDC |
| Output Power | 5A x 4CH |
| Maximum Watts | 12VDC - 240W 24VDC - 480W |
| Rating | IP20 |
| Operating Temp | -4° ~ 122°F |
| App Name | EasyLighting |
| Certification | UL Recognized, RoHS, CE |
| Warranty Period | 1 Year |
| IP67 RF Receiver | |
| SKU | LC-SR-RGBW-RCWP |
| Dimensions | 7.11" x 2.90" x 1.50"H |
| Input Connection | 2 Wire (+/-) |
| Output Connection | 5 Wire RGBW(+) |
| Input Power | 12 - 36VDC |
| Output Power | 8A x 4CH |
| Maximum Watts | 12VDC - 384W 24VDC - 768W |
| Rating | IP67 |
| Operating Temp | -4° ~ 122°F |
| Certification | UL Recognized, RoHS, CE |
| Warranty Period | 1 Year |
| IP67 RF/WiFi Receiver | |
| SKU | LC-SR-RGBW-RCWP |
| Dimensions | 7.11" x 2.90" x 1.50"H |
| Input Connection | 2 Wire (+/-) |
| Output Connection | 5 Wire RGBW(+) |
| Input Power | 12 - 36VDC |
| Output Power | 5A x 4CH |
| Maximum Watts | 12VDC - 240W 24VDC - 480W |
| Rating | IP67 |
| Operating Temp | -4° ~ 122°F |
| App Name | EasyLighting |
| Certification | UL Recognized, RoHS, CE |
| Warranty Period | 1 Year |
