EP4 Warm White LED Module, Plastic Base - 12VDC

3000K Module 3 Modules 3000K Module
3000K Module 3 Modules 3000K Module

SKU: MD-HT-EP4-WW

Order will ship: Monday, Dec 16 * If placed by Monday, Dec 16, 2:00pm PST.
Free Shipping On orders over $250 within the Continental U.S. * Excluding oversized items. See Exclusions
Buy
Discount
You Pay
5+
5% off
$42.75
10+
8% off
$41.40
15+
10% off
$40.50

Description

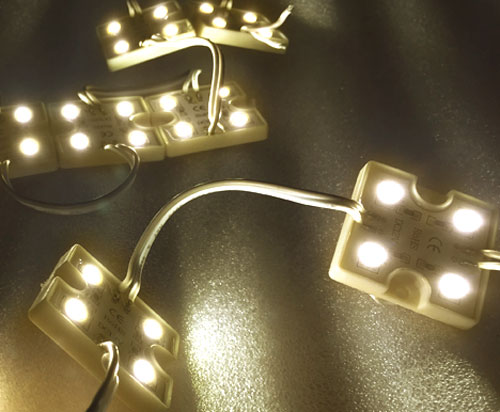

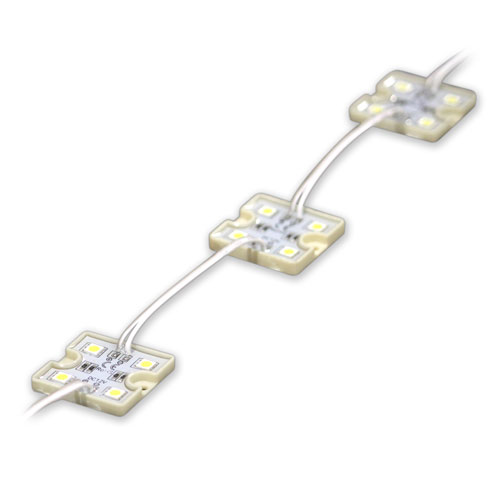

Our EP4 LED modules consist of four 5050 SMD LEDs encapsulated in an IP65 water-resistant housing for light boxes, signs, displays, and many other interior and exterior lighting applications. Requiring 1.44 watts of 12VDC power per module this light module is a low power, inexpensive and long lasting light source. Spaced 4.29" apart center to center these modules are ideal for lighting 4-6" light boxes and signs. Modules are sold in 10 and 50 units, with a max serial connection of 25 modules with power from one end, 50 modules if powered at both ends. For larger installations wire multiple runs of 50 units in parallel back to your 12VDC source. Each module has a 3M double sided adhesive and two screw holes for a permanent mounting solution. These modules are non-submersible and non-UV proof, CE and RoHS approved.

Specifications

SPECIFICATIONS
Model4 chip LED Backlight Module - White
SKUMD-HT-EP4-WW
Dimensions1.41" x 1.41" x 0.20"H
Connection Type2 Wire (+/-) 20AWG
LEDs Chip Size5050
LEDs Quantity4 LEDs per Module
Module Spacing4.29" Center to Center
Module Count10 per 3.5 ft
40 per 17.8 ft
Input Power12VDC
Watts1.44 Watts per module
Beam Angle120°
Lumens80 lm per module
Kelvin3,000K
RatingIP65 Water-resistant
Operating Temp-4° ~ 122°F
Max Serial Connection25 Modules
50 Modules Looped Circuit
Lifetime Hours50,000 Hours
CertificationCE, RoHS
Warranty Period1 Year
