Long Run LED Strip Lights - 70 LEDs per Meter - ETL 24VDC - IP20, IP67
SKU: RL-DX-LR70
Description

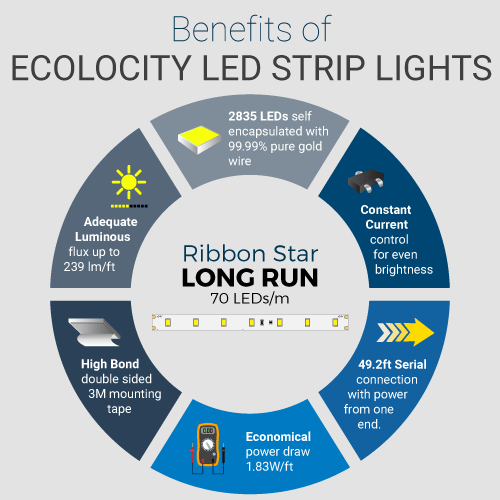

The LR70, 15m strip light provides 50 feet of continuous LED lighting with 24V power from one end, forget the hassle of multiple wire runs and splicing small strips together. With the ability to run 50ft in one connection long runs are made much easier with less wiring and less work. An IC constant current design provides consistent illumination with no voltage drop. On board are surface mounted 2835 chips that run cooler, brighter and longer than their 3528 style predecessor. The advantage of CRI over 90 outputs a truer light making colors and displays more vibrant and eye catching. A low power output of only 1.83 watts per foot and standard lumen output up to 239 lumens per foot make this strip extremely efficient and bright enough for most lighting application. This light strip requires 24VDC power input, can be dimmed using low voltage PWM dimmer or dimmable power supply and can be cut and re-connected every 3.94" (10cm). See our 8mm connector options sold separately below as well as soldering guides for a more permanent connection.
Specifications
SKU | Color | Kelvin | Lumens | Watts | Voltage | CRI | Beam Angle | Rating | Max Serial |
---|---|---|---|---|---|---|---|---|---|

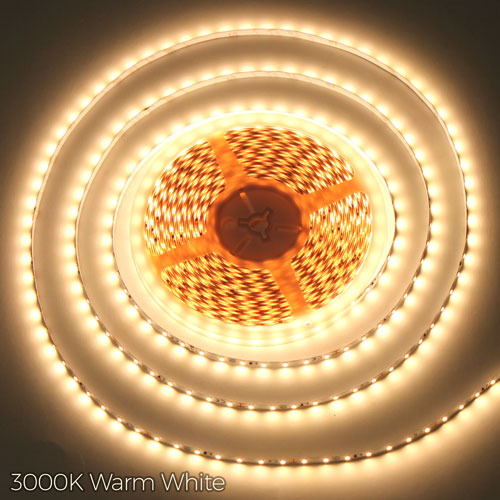

RL-DX-LR70-WW-15M | Warm White | 3000K | 201 lm/ft | 1.83 W/ft | 24VDC | >90 | 120° | IP20 | 49ft |
RL-DX-LR70-WW-T-15M | IP67 | ||||||||

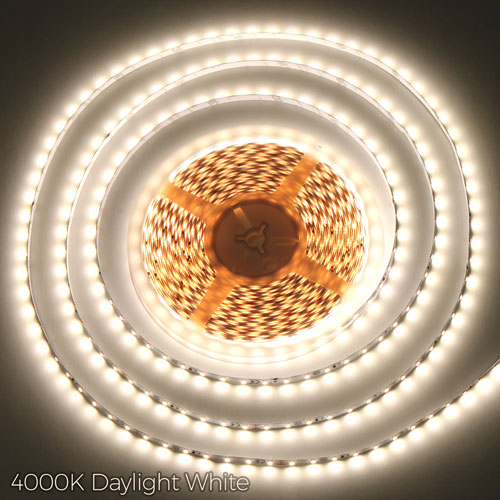

RL-DX-LR70-DW-15M | Daylight White | 4000K | 224 lm/ft | IP20 | |||||
RL-DX-LR70-DW-T-15M | IP67 | ||||||||

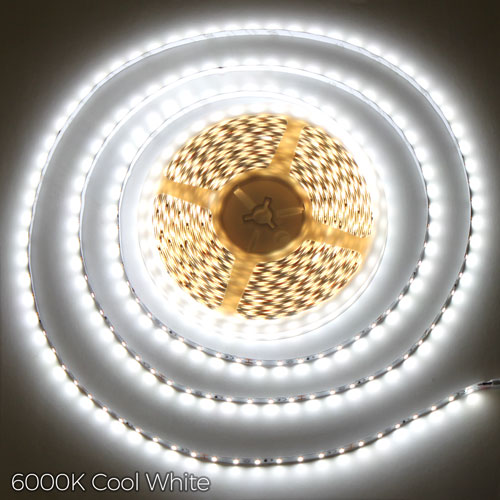

RL-DX-LR70-W-15M | Cool White | 6000K | 239 lm/ft | IP20 | |||||
RL-DX-LR70-W-T-15M | IP67 |
Downloads
Dimensions
