Ribbon Star Supreme LED Strip Lights - 204 LEDs per Meter - UL 12/24VDC - IP20
SKU: RL-SC-RSS
$135.99 full reel price (9.84ft) *shorter lengths available
Order will ship: Monday, Dec 23
* If placed by Monday, Dec 23, 2:00pm PST.
Free Shipping On orders over $250 within the Continental U.S.
* Excluding oversized items. See Exclusions
Description

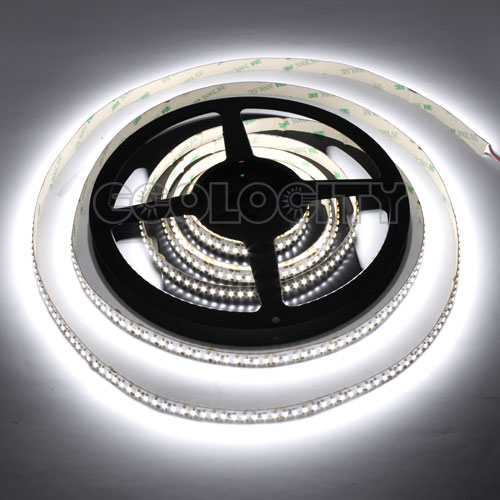

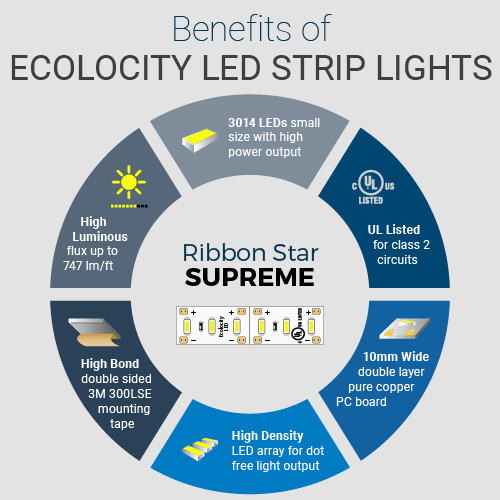

The Ribbon Star Supreme White LED Strip Light is a high brightness strip consisting of a high density array of high power 3014 super bright LED chips. It is a bright and reliable UL listed strip light that has been trusted by Boeing as a light source in many of its aircraft. It has close cut lines to fit any space without lighting gaps or long jumpers between corners. It is available in both 12VDC and 24VDC IP20 indoor rated.
Specifications
| SKU | Color | Kelvin | Lumens | Watts | Voltage | CRI | Beam Angle | Rating | Max Serial |
|---|---|---|---|---|---|---|---|---|---|

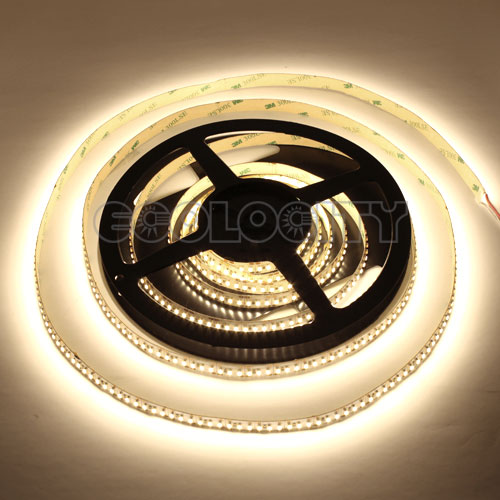

| RL-SC-RSS-WW-3M | Warm White | 3000-3500K | 579 lm/ft | 8.4 W/ft | 12VDC | >80 | 120° | IP20 | 12ft |
| RL-SC-RSS24-WW-3M | 24VDC | 20ft | |||||||

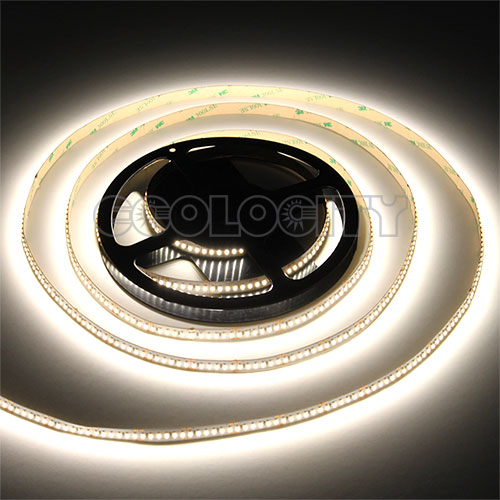

| RL-SC-RSS-DW-3M | Daylight White | 4000-4500K | 640 lm/ft | 12VDC | 12ft | ||||
| RL-SC-RSS24-WW-3M | 24VDC | 20ft | |||||||
| RL-SC-RSS-W-3M | Cool White | 6000-6500K | 747 lm/ft | 12VDC | 12ft | ||||
| RL-SC-RSS24-W-3M | 24VDC | 20ft |
Downloads
Dimensions
Reviews
|
Product Rating |
Write a Review |
|---|---|
|
|
|
|
- There are currently no reviews for this product
|
|
Questions
Products Used for Installation
Optional used to cut and re-connect indoor strips without soldering
(4) Ribbon Star COB, Strip to Wire Connector 10mm
SKU: RA-DX-RSC-SW10-4
(4) Ribbon Star COB, Strip to Strip Connector 10mm
SKU: RA-DX-RSC-SS10-4
(4) Ribbon Star COB, Strip Wire Strip Connector 10mm
SKU: RA-DX-RSC-SWS10-4
Heat Shrink Tubing - 1FT
SKU: OA-AM-HS-1FT
Optional but recommended for aesthetics and/or heat sink
PDS4-PLUS Aluminum Extrusions - .5" Deep
SKU: EX-KL1-1PL
KUBIK-45 Anodized Aluminum Extrusion Triangle Shape
SKU: EX-KL1-10
PDS-ZMG Glare Free Aluminum Extrusion - .87" Deep
SKU: EX-KL1-1GF
PDS-H Snap In Aluminum Extrusion - .44" Deep
SKU: EX-KL1-1SN
Required DC output must match LED light voltage
Mean Well LED Power Supply Two Output 100W - 12VDC
SKU: PS-MW-100-12
Mean Well LED Power Supply Two Output 100W - 24VDC
SKU: PS-MW-100-24
Mean Well LED Power Supply Three Output 200W - 12VDC
SKU: PS-MW-200-12
Mean Well LED Power Supply Three Output 200W - 24VDC
SKU: PS-MW-200-24
Required for dimming and color control
LTECH E1 LED Wall Dimmer - 108 Series Touch Panel, 12-24VDC
SKU: LC-LT-108-PAN-1C
LTECH Q1 Dimming Remote Control 4 Zone - 108 Series RF Remote, 5-24VDC
SKU: LC-LT-108-REM-1C
LTECH 5 in 1 WiFi-108 Intelligent LED Control System - 108 Series Smart Gateway
SKU: LC-LT-108-WIFI
Required for electrical connections
2 Conductor DC Connection Wire Red/Black Pair - 18AWG
SKU: LA-SS-DCW
(10) 2 Conductor Clamp Down 2 Wire Splice Connector
SKU: LA-LU-BC-2B-10
(10) 1 in 2 Out Lever Wire Nut T Splitter with Fixed Holder
SKU: LA-LU-BC-1T-10
(10) 1 Conductor Interlockable Clamp Down Wire Connectors
SKU: LA-LU-BC-1B-10
