Ribbon Star Ultra Warm White LED Strip Light, 2600-3100K, CRI 90 - UL 24VDC - IP20
SKU: RL-SC-UT24-WW-3M
Description

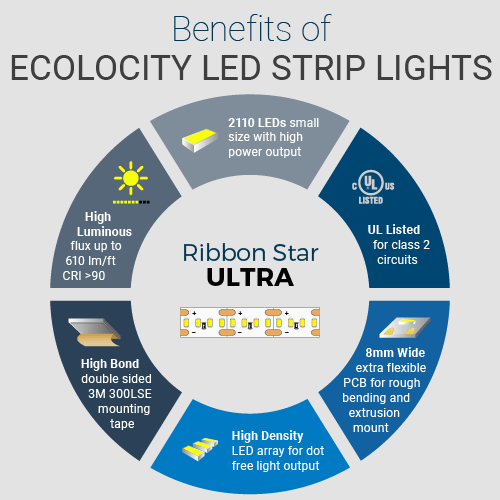

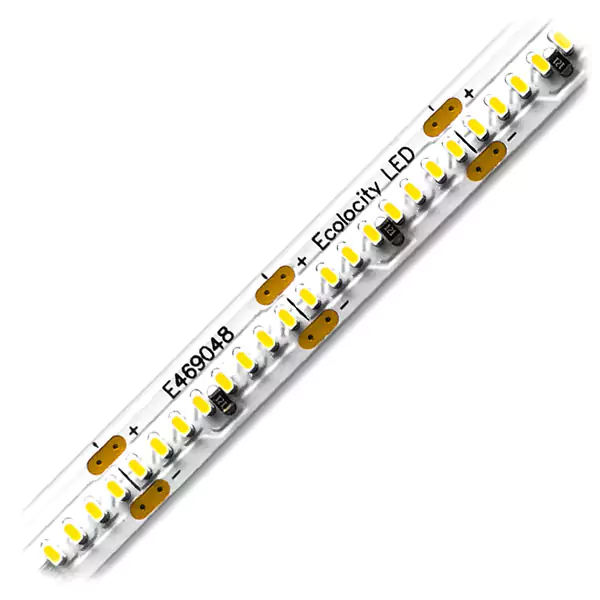

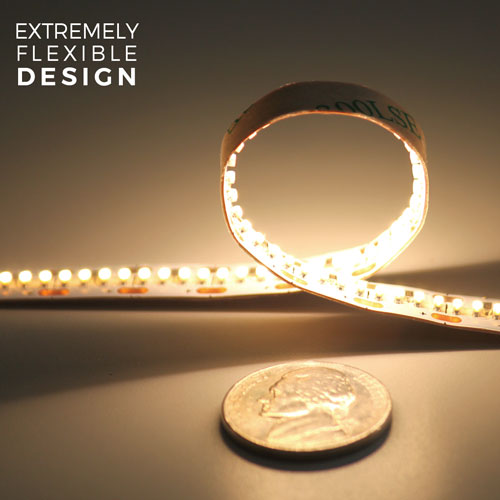

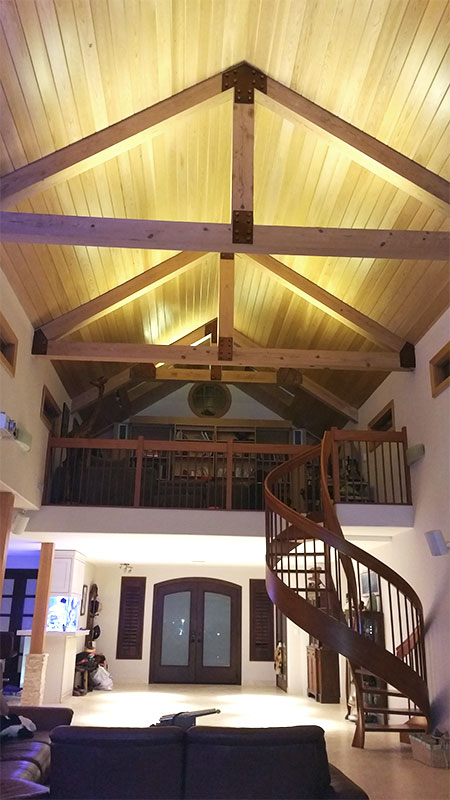

Version 2 of our flexible Ribbon Star Ultra White LED Strip has been upgraded with a new brighter and more efficient 2110 size CRI 90+ LED chip. This new chip and extremely flexible PCB design provides color popping, dot free illumination. While cut lines every 0.8" make it optimal for lighting designs. 1200 LEDs per Strip makes Ultra 2.0 the ideal choice for pairing with our aluminum channels to create bright, beautiful and custom, spot free, lighting fixtures for upscale residential and commercial uses. Embed into drywall, use under cabinets, light up a display, the applications are endless. Each roll of Strip Light has heavy duty 3M™ mounting tape on the back, for the best long-term mounting solution. Each foot of strip light consumes 6.1 watts of 24VDC power. An adequate 24VDC Constant Voltage power source is required. One bin keeps the 2600-3100K color temperature consistent from order to order. We recommended that you mount this to steel or aluminum for a good heat sink. UL Listed for class2 luminaries and fixtures, CE and RoHS compliant.
Specifications
| SPECIFICATIONS | |
| Model | Ribbon Star Ultra 2, Warm White, 24V - 118" (3m) |
| SKU | RL-SC-UT24-WW-3M |
| Dimensions | 118"L x 0.32"W x 0.07"H |
| Connection Type | 2 Wire (+/-) |
| LED Chip Type | 2110 |
| LED Quantity | 8 SMDs per 0.8" |
| LEDs Per Strip | 1200 SMD LEDs |
| Input Power | 24VDC Constant Voltage |
| Watts | 6.1W per foot |
| Beam Angle | 120° |
| Lumens | 549 lm/ft |
| CRI | >90 |
| Kelvin | 2600-3100K |
| Rating | IP20 Indoor |
| Operating Temp | -4°~113°F |
| Max Serial Connection | 20 Feet |
| Certification | UL Listed, RoHS, CE |
| Warranty Period | 2 Years |
Dimensions
Downloads
Reviews
|
Product Rating |
Write a Review |
|---|---|
|
|
|
|
- There are currently no reviews for this product
|
|
Questions
|
(1) Product Question |
Have a Question? |
|---|---|
|
|
|
|
kiendall asked: May 11, 2015 i need 18 feet of ribbon light that goes into a 3/8 inch plow in a wooden curved hand rail what is the sujested product to use Ecolocity LED Responded: May 11, 2015 I would recommend a mid level brightness strip for this project. Our 12VDC Ribbon Star Max Strip light is perfect, you can find an example of this same project using on our Max Warm White product page, type this SKU into the search bar to find it easier, RL-SC-RSM-WW-10, we also have white, red, green, blue, and amber colors available. |
|
