1 Channel Signal Amplifier / Repeater, 12-24VDC 10A

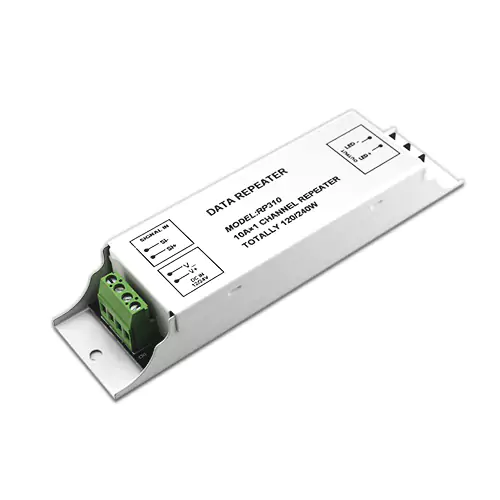

![Single Channel Singal Amplifier](https://cdn.commercev3.net/cdn.ecolocityled.com/images/uploads/signal_amp_1ch_500.jpg)
![Layout Image](https://cdn.commercev3.net/cdn.ecolocityled.com/images/uploads/sig-amp-single-eu500.gif)

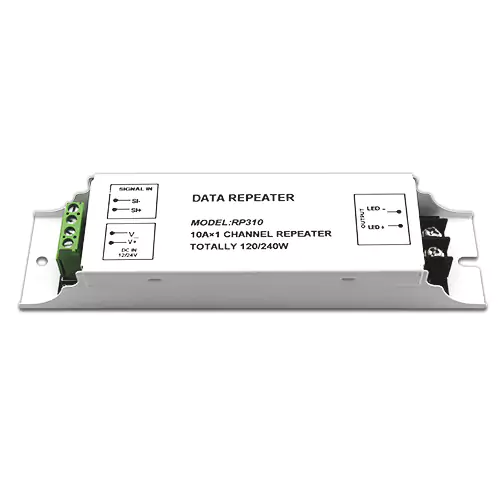

![Amplifier front View](https://cdn.commercev3.net/cdn.ecolocityled.com/images/uploads/signal_amp_1ch_f500.jpg)

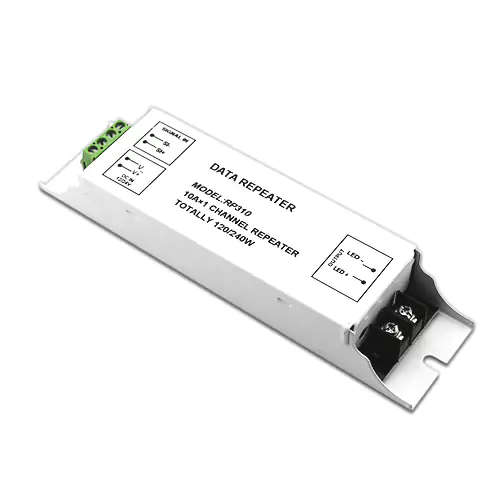

![Amplifier Side View](https://cdn.commercev3.net/cdn.ecolocityled.com/images/uploads/signal_amp_1ch_b500.jpg)
![Max Warm White](https://cdn.commercev3.net/cdn.ecolocityled.com/images/uploads/max-strip-kitchen-cabs-500.jpg)
![Single Channel Singal Amplifier](https://cdn.commercev3.net/cdn.ecolocityled.com/images/uploads/signal_amp_1ch_150.jpg)
![Layout Image](https://cdn.commercev3.net/cdn.ecolocityled.com/images/uploads/sig-amp-single-eu150.gif)
![Amplifier front View](https://cdn.commercev3.net/cdn.ecolocityled.com/images/uploads/signal_amp_1ch_f150.jpg)
![Amplifier Side View](https://cdn.commercev3.net/cdn.ecolocityled.com/images/uploads/signal_amp_1ch_b150.jpg)
![Max Warm White](https://cdn.commercev3.net/cdn.ecolocityled.com/images/uploads/max-strip-kitchen-cabs-150.jpg)
SKU: LC-LT-1AMP
$34.99 $42.99
Order will ship: Monday, Jul 01
* If placed by Monday, Jul 01, 2:00pm PST.
Free Shipping On orders over $250 within the Continental U.S.
* Excluding oversized items. See Exclusions
Buy
Discount
You Pay
6+
5% off
$33.25
15+
8% off
$32.20
30+
12% off
$30.80
75+
15% off
$29.75
Description
A single color signal amplifier / repeater for extending a PWM Dimming signal to additional single color LED Lights. Use this signal amplifier for larger LED light installations where you would like to dim a large amount of LED lights off of a single dimming signal. Once you have met the power limitations of your PWM dimmer you can use this amplifier to dim an additional 10A of lights, or 120W at 12VDC / 240W at 24VDC. Simple to use screw down terminals make for an easy and secure connection, see the installation guide below for wiring instructions.
Specifications
SPECIFICATIONS | |
Model | 1 Channel Signal Amplifier / Repeater |
SKU | LC-LT-1AMP |
Dimensions | 6.5"L x 1.7"W x 1.0 "H |
Constant Voltage DC Power | 12-24VDC Constant Voltage, 10A |
Watts | 120W / 12VDC 240W / 24VDC |
Rating | Dry |
Warranty Period | 1 Years |
