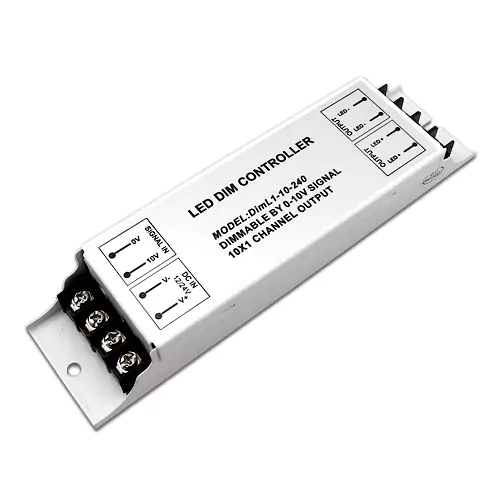

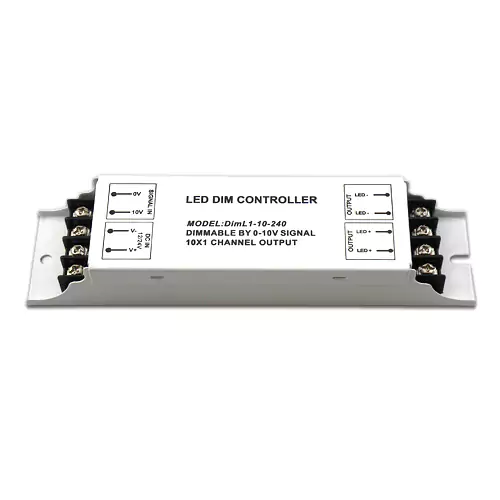

1 Channel 0-10V PWM Dimmer, 12-24VDC 10A
SKU: LC-EU-DIM-2
Description
*NOTE: THIS IS NOT A DIMMER FOR 0-10V LED LIGHTS*
A single channel LED PWM Dimmer for use only with 0-10V Control Signal such as a home control system or 0-10V switch. Compatible switches include Lutron Diva, part# DVTV, and the Lutron Nova, part# NTFTV, as well as Graffik Eye Systems with certain interfaces and panels including TVM Modules, or RadioTouch RF wireless control systems. Input power source must be 12-24VDC, as well as 12-24VDC output power from two output ports to your single channel LED Lighting product. One channel, 10A per channel with a maximum power of 120W at 12VDC, 240W at 24VDC. For use with common anode style LED Lighting. The power supply and signal wires are connected by screw down type wire connections.
Specifications
| SPECIFICATIONS | |
| Model | 1 Channel 0-10V PWM Dimmer |
| SKU | LC-EU-DIM-2 |
| Dimensions | 6.5"L x 1.7"W x 1.0"H |
| Constant Voltage DC Power | 12 - 24VDC 10A per Channel Max |
| Watts | 12VDC - 120W 24VDC - 240W |
| Rating | Dry |
| Dimming Frequency | 780 Hz |
| Warranty Period | 1 Year |
