100W ECO-Series Triac ELV / MLV Dimming LED Drivers , UL Listed, NEMA 4X - 12/24VDC

Name: 100W ECO-Series Triac ELV / MLV Dimming LED Drivers , UL Listed, NEMA 4X - 12/24VDC
Brand: Ecolocity LED
SKU: PS-DM-ECO-100
Price: 124.99 USD
Availability: InStock

SKU: PS-DM-ECO-100

$124.99

Add to Wishlist

Order will ship: Monday, Mar 24 * If placed by Monday, Mar 24, 2:00pm PST.

Free Shipping On orders over $250 within the Continental U.S. * Excluding oversized items. See Exclusions

Buy

Discount

You Pay

5% off

$118.75

10+

10% off

$112.50

15+

15% off

$106.25

Description

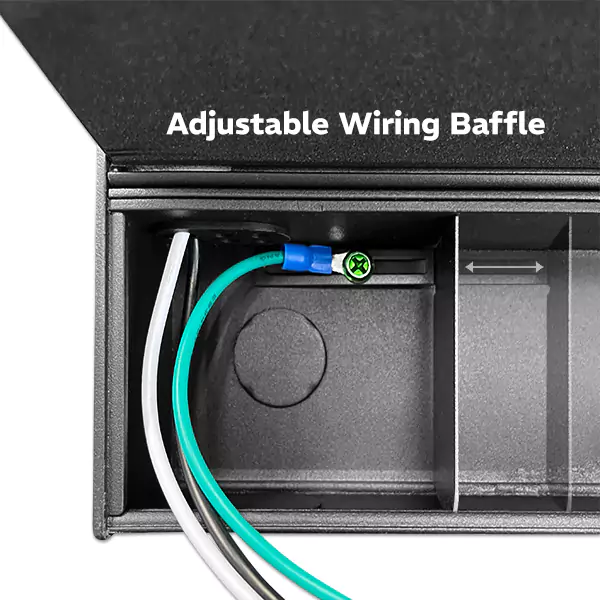

The UL Listed 100 Watt 12VDC and 24VDC ECO-Series ELV, MLV, Triac or Phase Dimmable LED Drivers are an affordable and reliable AC dimming solution for our single color LED lighting products. Achieve smooth free flicker free 0.1-100% dimming range of your LED Strip Lights, Neon, Modules on the AC input side using a variety of compatible wall mounted household dimmers. The NEMA 4X electrical junction box enclosure provides a safe and roomy wiring space suitable for both indoor and outdoor environments. The exclusive "Clamshell" patented J-box design makes access to both AC & DC wiring quick and simple without the need of a securing screw, while multiple mounting brackets offers easy installation in various locations. Built in over-heat, over-load and short circuit protection with >0.95 power factor and output voltage adjustment makes this a premiere LED driver for powering and dimming single color 12-24VDC constant voltage LED lighting. A 10-100% load is recommended for optimal AC dimming functionality.

Specifications

SKU	DC Output	Max Current	Max Power	AC Input	AC Dimming	DC Dimming	Rating	Certification	Warranty
PS-DM-ECO-100-12	12VDC	8.33A	100W	110-277VAC	ELV, MLV, Phase	PWM 4kHz	Dry, Damp, Wet	UL, ROHS, FCC	3 Years
PS-DM-ECO-100-24	24VDC	4.16A	100W	110-277VAC	ELV, MLV, Phase	PWM 4kHz	Dry, Damp, Wet	UL, ROHS, FCC	3 Years

Detailed Specifications

OUTPUT TYPE
Voltage Tolerance	±0.5V
Voltage Regulation	±0.5%
Load Regulation	±1%
INPUT TYPE
Voltage Range	110-277VAC
Frequency Range	47-63Hz
Efficiency (Typ.)	90% @ 120VAC, 91% @ 277VAC
Total Harmonic Distortion	THD<15% (@100% load)
Power Factor (Typ.)	0.99 @ 120VAC, 0.98 @ 277VAC
AC Current (Typ.)	1.04A
Inrush Current (Typ.)	26A
Leakage Current	<0.5mA
PROTECTION
Short Circuit	Hiccup mode, recovers automatically after fault condition is removed.
Over Load	Intelligently reduces the output voltage, auto-recovery or re-power on to recover.
Over Temperature	212°F±50° Intelligently reduces the output voltage and current. Auto-recovery after over load is removed.
ENVIRONMENT
Working Temperature	Tcase=-40 ~ +140°F (Please refer to "Load vs Ambient Temperature" graph)
Working Humidity	20 ~ 95% RH non-condensing
Storage Temperature, Humidity	-40 ~ +194°F, 10 ~ 95% RH
Temperature Coefficient	±0.03% / °F (32~122°F)
Vibration	10~500Hz, 5G 10min/1 cycle,period for 60min. each along X,Y,Z axes
SAFETY & EMC
Safety Standards	UL8750, CSAC22.2 No. 250.0-08
Withstand Voltage	I/P-O/P:1.88KVAC
Isolation Resistance	I/P-O/P:100M Ohms / 500VDC / 25/ 70% RH
EMC Emission	Compliance to FCC part 15 Subpart B

Compatible Dimmers

Brand	Model	Compatability	Dimming Range	ELV/MLV	Built-In Tuning
LUTRON	SCL-153P	Yes	0-100%	MLV	0~30% min
	DVCL-153P	Yes	0-100%	MLV	0~30% min
	CTCL-153P-LA	Yes	0-100%	MLV	0~30% min
	DVCL-253P	Yes	0-100%	MLV	0~30% min
	TGCL-153PH	Yes	0-100%	MLV	0~30% min
	TGCL-153PR	Yes	0-100%	MLV	0~30% min
	MACL-153MH-LA	Yes	0-100%	MLV	0~30% min
	SELV-300P	Yes	1-100%	ELV	N/A
	DVELV-300P	Yes	1-100%	ELV	N/A
	PD-10NXD	Yes	1-100%	ELV	N/A
	CT-600PR-WH	No	0%	MLV	Yes
	DVLV-103P	No	0%	MLV	Yes
LEVITON	6672-1LW	Yes	0-100%	MLV	0~30% min
	IPE04-1LZ	Yes	1-100%	ELV	N/A
	TSL06-1LW	No	0%	MLV	Yes
	DSL06-1LZ	No	0%	MLV	Yes
LEGRAND	RH703PTUTCCCV4	Yes	1-100%	ELV	N/A
LEGRAND	RHCL453PGCCV4	No	0%	MLV	Yes
