Super Nova 4 LED Module Daylight White
SKU: MD-EL-SN4-DW
Description

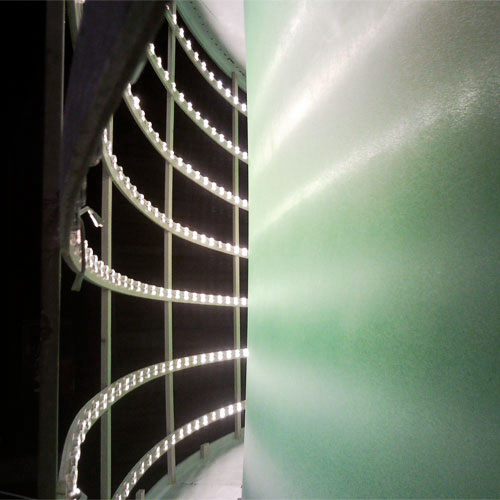

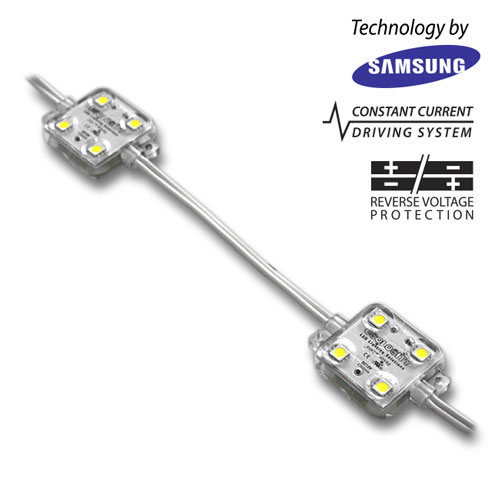

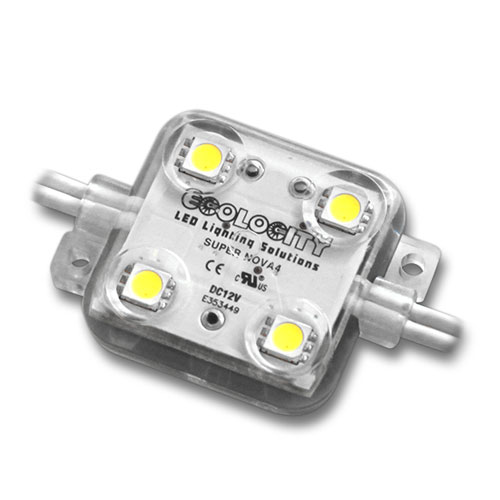

The Super Nova 4 Daylight White (6500K) LED modules are superior quality Backlight modules for channel letters, signs and many other backlighting projects. This product easily conforms to circular and curved layouts. With 4 high quality Samsung SMD LEDs on board the lighting is amazing. The LED module's clear PVC body provides IP63 water and dust resistance. This module is suitable for 18" and 24" channel letters or larger. A 12 VDC constant voltage power supply is required to connect a series of 50 module strings in parallel connections (See Installation Guide). 3M™ VHB™ mounting tape on the back, provides the best long-term mounting solution for our modules. Note; Module is non-submersible / non-UV proof. All Super Nova LED Modules are UL recognized.
Specifications
| SPECIFICATIONS | |
| Model | Super Nova 4 - Daylight White |
| SKU | MD-EL-SN4-DW |
| Dimensions | 1.81" x 1.4" x 0.35"H |
| Connection Type | 2 Wire (+/-) 18AWG |
| LEDs Chip Size | 5050 |
| LEDs Quantity | 4 LEDs per Module |
| Module Spacing | 5.91" Center to Center |
| Modules Per Foot | 2.03 Modules |
| Input Power | 12VDC |
| Watts | 1.15 Watts per module |
| Beam Angle | 120° |
| Lumens | 68 lm per module |
| Kelvin | 6,500K |
| Rating | IP63 Water-resistant |
| Operating Temp | -4° ~ 122°F |
| Max Serial Connection | 50 Modules |
| Lifetime Hours | 42,500 Hours |
| Certification | UL Recognized, CE, RoHS |
| Warranty Period | 5 Years |
Downloads
| Downloads & Info |
| Click For Product Data Sheet |
| Click For Installation Guide |
