Ribbon Star Ultra High CRI LED Strip Lights - 400 LEDs per Meter - UL 12/24VDC - IP20 & IP65










SKU: RL-SC-UT
$99.99 full reel price (9.84ft) *shorter lengths available
Order will ship: Wednesday, Apr 16
* If placed by 2:00pm PST.
Free Shipping On orders over $250 within the Continental U.S.
* Excluding oversized items. See Exclusions
Description

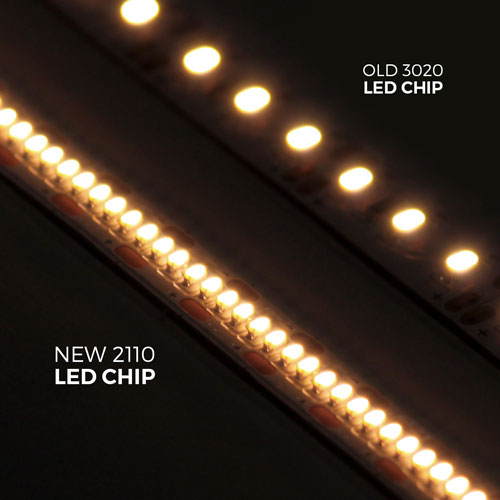

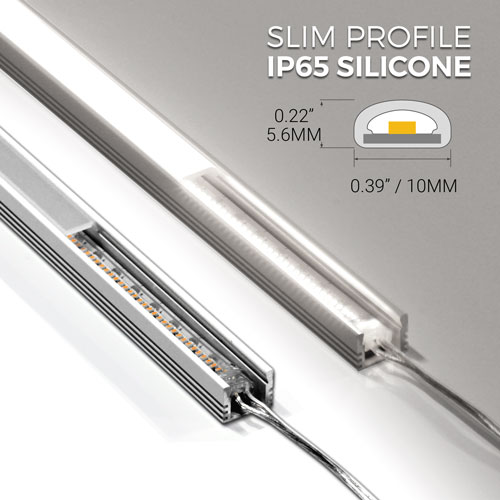

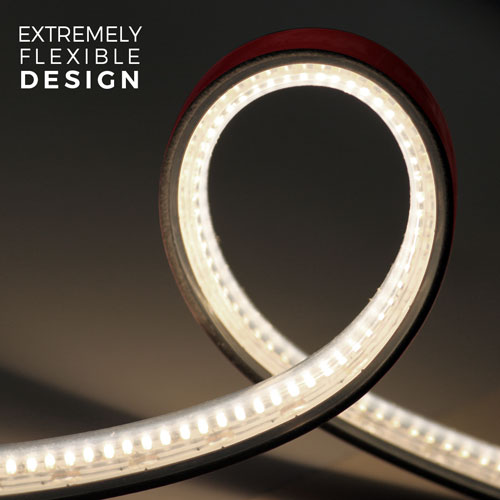

Super high density LED strip light consisting of a dense array of 2110 size chips on an 8mm wide pc board. This strip is extra flexible, bright and has very small cut points to fit the size of any job. The high density makes the strip appear to be dotless and looks even better when paired with a low profile extrusion and cover. Available in both indoor IP20 and waterproof IP65 versions. The waterproof version fits in standard size 10mm channels with optional cover choice to create premiere waterproof linear lighting fixtures.
Specifications
SKU | Color | Kelvin | Lumens | Watts | Voltage | CRI | Beam Angle | Rating | Max Serial |
---|---|---|---|---|---|---|---|---|---|
RL-SC-UT12-WW-3M | Warm White | 2600-3100K | 549 lm/ft | 6.1 W/ft | 12VDC | >90 | 120° | IP20 | 15ft |
RL-SC-UT24-WW-3M | 24VDC | 20ft | |||||||
RL-SC-UT12-WW-T-3M | 441 lm/ft | 4.9 W/ft | 12VDC | IP65 | 15ft | ||||
RL-SC-UT24-WW-T-3M | 24VDC | 20ft | |||||||
RL-SC-UT12-DW-3M | Daylight White | 3800-4200K | 579 lm/ft | 6.1 W/ft | 12VDC | IP20 | 15ft | ||
RL-SC-UT24-DW-3M | 24VDC | 20ft | |||||||
RL-SC-UT12-DW-T-3M | 465 lm/ft | 4.9 W/ft | 12VDC | IP65 | 15ft | ||||
RL-SC-UT24-DW-T-3M | 24VDC | 20ft | |||||||
RL-SC-UT12-W-3M | Cool White | 5750-6250K | 610 lm/ft | 6.1 W/ft | 12VDC | IP20 | 15ft | ||
RL-SC-UT24-W-3M | 24VDC | 20ft | |||||||
RL-SC-UT12-W-T-3M | 490 lm/ft | 4.9 W/ft | 12VDC | IP65 | 15ft | ||||
RL-SC-UT24-W-T-3M | 24VDC | 20ft |
Dimensions

Downloads
Reviews
Product Rating |
Write a Review |
---|---|
|
|
- There are currently no reviews for this product
|
Questions
(0) Product Questions |
Have a Question? |
---|---|
|
|
- There are currently no questions for this product
|
Products Used for Installation
Strip Connectors
Waterproof Accessories Channel & Diffuser Dimmable Power DC Power
PWM Dimmers
Wire & Connectors
Optional
used to cut and re-connect indoor strips without soldering
Required
to maintain waterproof rating after cutting waterproof strips
Required
Required for dimming from ac wall switch (Do not use with DC controls)
Required
Required for standard DC output (Do use with DC controls)
